Description

1. Core Product Features

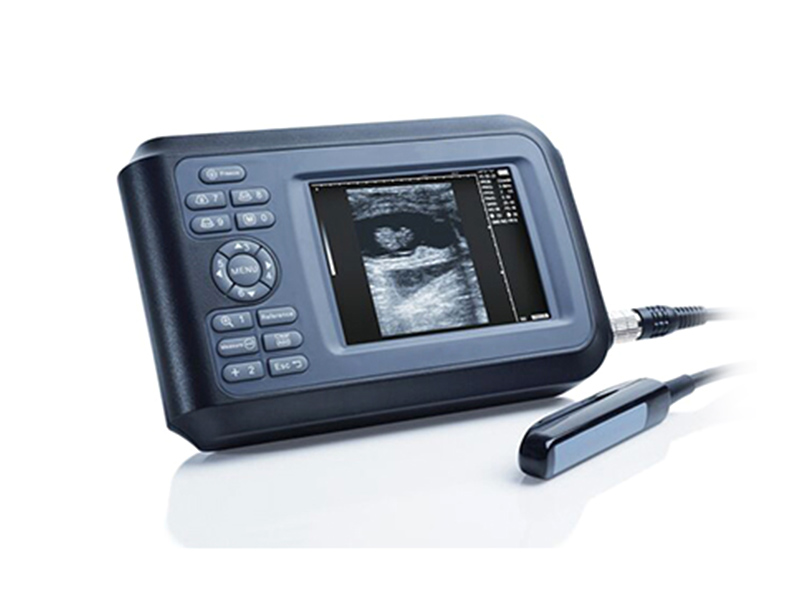

• Handheld & Lightweight Design: Weighing only 700g, the scanner is easy to carry and operate with one hand, reducing fatigue during prolonged field visits or multiple animal examinations. Its compact form factor fits comfortably in veterinary bags, ensuring accessibility in remote locations.
• Hands-Free Operation: Equipped with two shoulder and waist belts, the scanner can be securely mounted to the body, freeing up hands for animal restraint or probe manipulation. This feature is critical for solo practitioners or busy farm environments where multi-tasking is essential.
• Rugged & Protective Build: A rubber protector surrounds the main unit, shielding it from dirt, dust, and impact—common hazards in veterinary settings. The splash-proof design adds an extra layer of durability, allowing safe use in wet or messy conditions (e.g., barns, pastures, or during animal birthing).
• Dual Power Supply: Supports both rechargeable battery and AC power (via included adapter), offering flexibility for diverse use cases. The battery ensures uninterrupted operation in field settings without access to electrical outlets, while AC power is ideal for clinic-based examinations.
• User-Centric Interface: Features a 5.5-inch TFT color LCD screen for clear image visualization, even in bright outdoor environments. The interface supports English/Chinese language switching, catering to diverse veterinary teams and global markets.
• Full Digital Imaging Technology: Delivers high-quality, 256-level gray scale imaging for precise tissue differentiation, enabling accurate detection of reproductive structures (e.g., follicles, embryos), abdominal organs, and abnormalities.

2. Technical Specifications

2.1 Display & Imaging Core

• Screen: 5.5-inch TFT color LCD, providing clear, bright visualization of ultrasound images with wide viewing angles—essential for outdoor use or shared examinations.
• Display Modes: Supports multiple imaging modes to adapt to different diagnostic needs:
  • B-mode (Brightness mode): Foundational 2D imaging for anatomical visualization.
  • B+B mode (Dual B-mode): Simultaneous display of two B-mode images for comparative analysis (e.g., left vs. right uterine horns).
  • B+M mode (B-mode + Motion mode): Combines 2D imaging with M-mode for tracking dynamic structures (e.g., fetal heart motion).
  • M-mode (Motion mode): Records and displays tissue motion over time, useful for heart rate measurement or fetal viability assessment.
  • 4B mode (Quad B-mode): Split-screen display of four B-mode images, enabling multi-view analysis of large organs or multiple anatomical sites.
• Gray Scale: 256 levels, ensuring subtle differences in tissue density are captured—critical for distinguishing between healthy tissue, fluid, and lesions.
• Scan Depth: Adjustable from 70mm to 240mm, covering superficial (e.g., skin, small organs) to medium-depth (e.g., abdominal organs, uterine structures) tissues across different animal sizes.
• Cine Loop: Stores ≥400 frames and 64 images for retrospective review, allowing veterinarians to analyze dynamic processes (e.g., fetal movement) or capture critical diagnostic moments.
• Focus Position: 2 adjustable focus points, enabling operators to sharpen image clarity on specific target areas (e.g., small follicles, embryonic structures).

2.2 Image Processing & Optimization

• Gain Controls: Adjustable Near Gain (N.G.), Far Gain (F.G.), and Overall Gain (O.G.), allowing fine-tuning of image brightness across different depths. This ensures uniform visualization of structures from the probe surface to the maximum scan depth.
• Image Enhancement: Coded color, GAMA correction, histogram adjustment, and image smoothening functions reduce noise and improve tissue contrast. These tools are particularly useful for imaging animals with varying body conditions (e.g., obese vs. emaciated).
• Time-Gain Compensation (TGC): Optimizes image brightness at different depths, compensating for signal attenuation in deeper tissues and ensuring consistent image quality across the entire field of view.

2.3 Measurement & Annotation Tools

• General Measurements: Distance, circumference, area, volume, and heart rate—enabling precise sizing of organs, lesions, or reproductive structures (e.g., follicle diameter, uterine horn thickness).
• Obstetric (OB) Measurement Packages: Specialized modules tailored to different species, automating critical reproductive health assessments:
  • Equine: GSD (Gestational Sac Diameter) for pregnancy dating.
  • Bovine: BL (Body Length), SL (Sternum Length), HL (Humerus Length) for fetal development tracking.
  • Swine: HL (Humerus Length) for gestational age calculation.
  • Sheep: USD (Uterine Sac Diameter) for pregnancy confirmation.
  • Canine: GSD (Gestational Sac Diameter), CRL (Crown-Rump Length), HD (Head Diameter), BD (Body Diameter) for reproductive monitoring.
  • Feline: HD (Head Diameter), BD (Body Diameter) for pregnancy assessment.
• Annotation Functions: Full-screen editor for adding patient information (name, sex, ID, age), date, and clock. This facilitates organized record-keeping and simplifies communication with animal owners or colleagues.
• Image Reservation: Stores images for later review, sharing, or inclusion in medical records, supporting compliance with veterinary documentation standards.

2.4 Power & Physical Specifications

• Battery Performance: Rechargeable battery provides ≥3 hours of continuous working time—sufficient for full days of field visits or high-volume farm examinations. The charging time is ≥2 hours, ensuring quick replenishment between uses.
• Net Weight: 700g, making it one of the lightest handheld veterinary ultrasound scanners on the market. Its ergonomic design reduces strain during extended use.

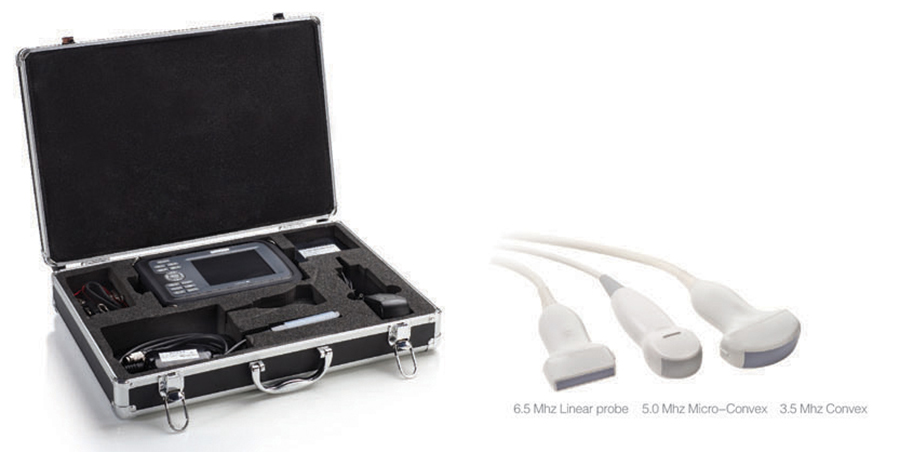

• Packaging: Supplied in a metallic case within a carton box, offering robust protection during transportation and storage. The case is designed for easy carrying, with compartments for the main unit, probes, and accessories.

3. Configuration Details

3.1 Standard Configuration

• 1 x Main unit (with 5.5-inch TFT color LCD screen)
• 1 x 6.5MHz Veterinary Rectal Linear Probe: Specialized for reproductive examinations (e.g., rectal palpation 辅助 ultrasound in cattle, horses, or sheep), enabling access to pelvic and uterine structures.
• 1 x AC adapter: For powering the scanner in clinics or locations with electrical outlets.
• 1 x Rubber protector: For shielding the main unit from dirt, impact, and moisture.
• 1 x Rechargeable battery: Provides portable power for field use.
• 2 x Shoulder and waist belts: Enables hands-free operation.
• 1 x Carrying case: Organizes and protects all components during transport.

3.2 Optional Accessories

• Optional Probes:
  • R50/3.5MHz Convex Probe: Ideal for abdominal imaging in large animals (e.g., cattle, horses) or deep tissue examinations, with a broader field of view and enhanced penetration.
  • L40/7.5MHz Linear Probe: Delivers higher resolution for superficial structures (e.g., thyroid, skin, or small organs in dogs and cats) or detailed imaging of small lesions.
  • R20/5.0MHz Micro-Convex Probe: Designed for small animals (e.g., cats, toy breed dogs) or pediatric veterinary patients, offering a compact footprint and high-resolution imaging of delicate structures.
• Power & Charging Accessories:
  • Car lighter adapter: Allows battery charging via a vehicle’s 12V power outlet, extending portability for long field trips.
  • Additional rechargeable battery: Provides backup power for extended workdays or remote locations without charging facilities.
• Visualization & Mounting Accessories:
  • Video goggles: Enables hands-free image viewing, useful for complex procedures or when the scanner is mounted on the body.
  • Scanner bracket: Offers alternative mounting options (e.g., on examination tables or vehicle dashboards) for clinic or mobile use.

4. Clinical Applications & Target Species

• Reproductive Health: Pregnancy confirmation, gestational age calculation, follicle monitoring, uterine health assessment, and fetal viability checks in cattle, horses, sheep, swine, dogs, and cats. The rectal linear probe is particularly effective for transrectal imaging in large animals.
• Abdominal Imaging: Evaluation of abdominal organs (e.g., liver, kidneys, spleen, bladder) for abnormalities such as tumors, cysts, stones, or fluid accumulation. The convex and micro-convex probes (optional) enhance imaging of deep or small abdominal structures.
• General Diagnostics: Assessment of soft tissue masses, musculoskeletal injuries (superficial), and vascular structures in small to large animals. The 256-level gray scale and image enhancement tools ensure clear visualization of subtle abnormalities.
• Target Species:
  • Large animals: Horses, cattle, camels, sheep, swine.
  • Small animals: Dogs, cats (including toy breeds and felines of all sizes).
