1. Core Imaging & Probe Parameters

• Probe & Penetration: Convex probe with dual-frequency adjustment (3.5MHz/5MHz) – 3.5MHz for deep-tissue penetration (up to 305mm) ideal for abdominal organs and mid-term pregnancy, 5MHz for balanced resolution and penetration in medium-depth tissues. 60° scan angle provides a wide field of view for comprehensive observation.
• Imaging Modes: Supports B, B/M, B+Color, B+PDI (Power Doppler Imaging), and B+PW (Pulsed Wave Doppler) modes, covering static tissue observation, dynamic monitoring, and blood flow detection for multi-dimensional diagnosis.
• Imaging Foundation: 18 frames/second frame rate ensures smooth real-time imaging; adjustable scan depth (90/160/220/305mm) adapts to diverse tissue depth needs, from superficial abdomen to deep pelvic structures.

2. Clinical Functions & Operation Optimization

• Image Adjustment: Equipped with multi-dimensional optimization tools, including BGain (30dB-105dB), TGC (Time-Gain Compensation), 8-level DYN (40-110), Focus, Depth, Harmonic, Denoise, Color Gain, Steer, and PRF. These tools effectively reduce noise, balance tissue brightness, and enhance image layering for precise lesion identification.
• Clinical Auxiliary Functions: Integrated in-plane/out-of-plane puncture guide lines and automatic blood vessel measurement, improving interventional procedure accuracy. Cineplay supports auto/manual playback with adjustable frames (100/200/500/1000) for frame-by-frame review of key details.
• Measurement & Operation: Supports Length, Area, Angle, Heart rate, and Obstetric parameters, providing quantitative data for diagnosis. A built-in Freeze button on the probe enables instant image capture, while software operates via touch screen for intuitive operation.

3. Data Management, Transmission & Compatibility

• Data Storage: Saves images/videos in JPG, MP4, PNG, and DCM formats; DCM compatibility enables integration with hospital PACS/HIS systems for standardized data management and case sharing.
• Transmission Modes: Dual-connection support – WiFi (802.11g/20MHz/5G/450Mbps) for wireless data transfer, and USB cable for stable wired connection, adapting to different clinical environments.
• System Compatibility: Works seamlessly with Apple iOS, Android, and Windows, supporting connection to smartphones, tablets, and computers for flexible terminal matching.

4. Power & Physical Specifications

• Power Supply: Built-in Li-ion battery with cable charging support (works while charging), ensuring uninterrupted operation during long examinations or emergencies.
• Portability: Ultra-compact size (11cm×6cm×2cm) and 120g lightweight design, ergonomic for one-hand operation, easily carried in a medical bag for bedside, home visit, or field medical services.

5. Standard & Optional Configurations

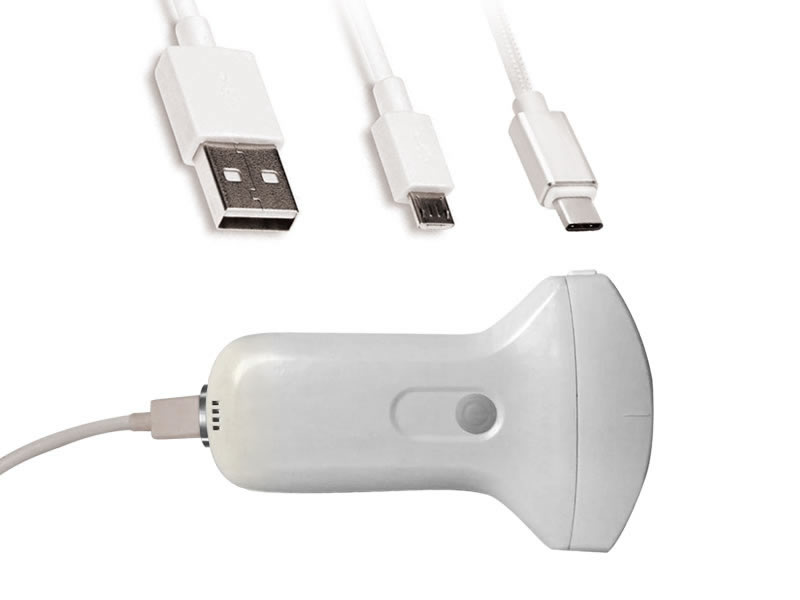

• Standard Configuration: 1×Wireless Probe Type Ultrasound Scanner, 1×USB Charging Cable.
• Optional Accessories: Carrying Bag, Aluminium Suitcase (shockproof storage), Stainless Steel Puncture Guide, Wireless Power Bank (extended battery life), pre-configured mobile devices, Tablet Bracket, and Trolley (mobile operation platform).
