1. Core Scanning & Probe Configuration

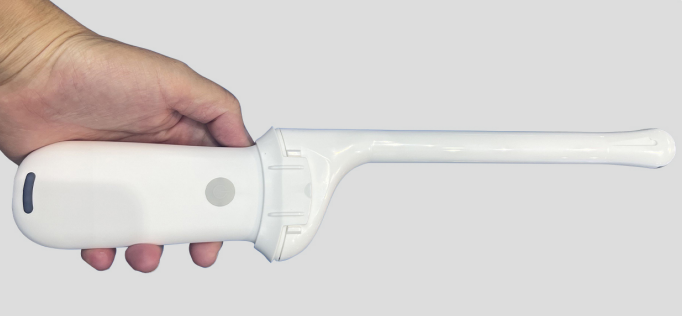

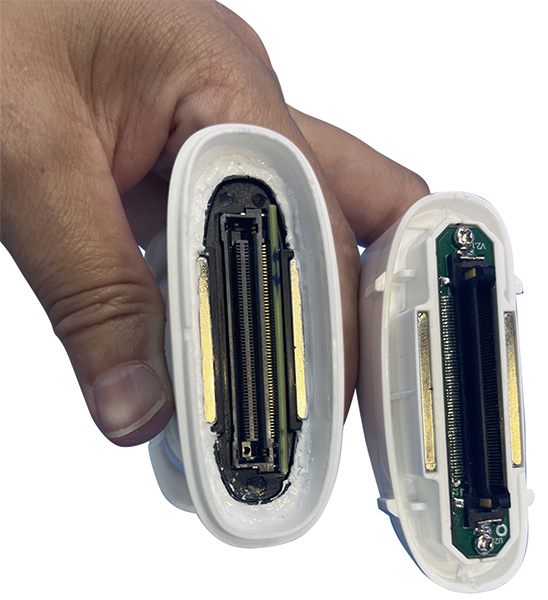

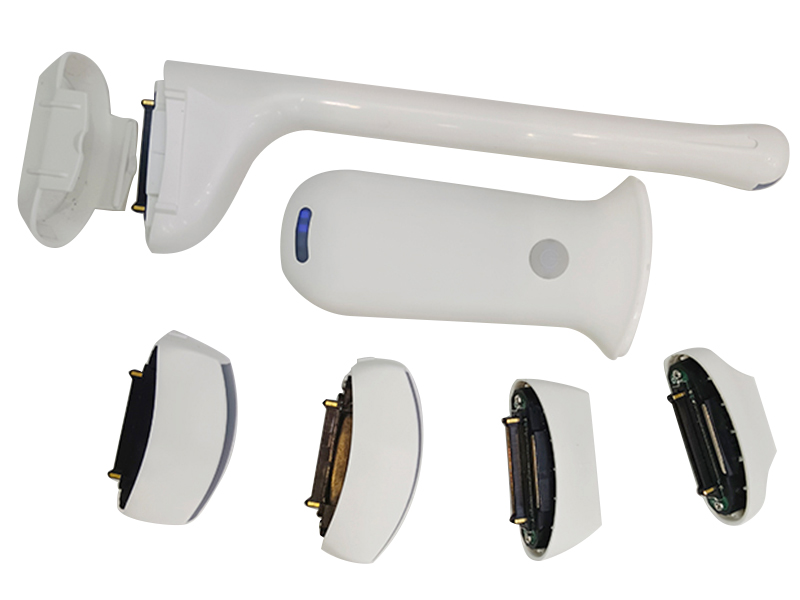

• Scanning & Probe: Electronic array scanning with four probe options – Convex/Phased array (3.2/5.0MHz or 3.2/4.0MHz), Linear (7.5/10MHz or 10/13.2MHz), Transvaginal (6.6/8.0MHz). 128 elements and 32 channels enable high-quality signal processing with minimal distortion.
• Imaging Range: Adjustable scanning depth – Convex (90/160/220/305mm), Linear (20/40/60/100mm), Transvaginal (20/40/60/100mm). Field of view: Convex R60, Phasedarray R80, Linear L40, covering diverse tissue depth and scope needs.
• Imaging Foundation: 256-level gray scale, 18 frames/second frame rate, and 8-level dynamic range (40-110), ensuring clear reproduction of tissue details and subtle density differences for precise diagnosis.

2. Mode-Specific Imaging Parameters

• COLOR Mode: Linear array supports deflection angles (-12/-7/0/7/12°), PRF ≥4 groups, wall filter (0-15), color gain (0-10); Convex/cardiac modes have PRF ≥4 groups, wall filter (0-15), color gain (0-10/100), with no deflection angle for convex/cardiac.
• PW Mode: Sampling volume (1/2/5mm), correction angle (-85 to 85°), PRF ≥4 groups for all modes (USB phased array probe: PRF 2-20K ≥8 groups). Baseline: Linear (0-500cm/s), Convex (0-800cm/s), Cardiac (0-600cm/s).

3. Clinical Functions & Image Optimization

• Image Adjustment: Equipped with gain, focus, reverse pulse harmonics, and noise reduction, enabling personalized imaging optimization for different probes and examination sites.
• Clinical Auxiliary Functions: In-plane/out-of-plane puncture guides and automatic vascular measurement improve interventional accuracy. Playback supports auto/manual modes with adjustable frames (100/200/500/1000) for frame-by-frame review.
• Measurement Scope: Covers thyroid, small organs, pediatrics, blood vessels, carotid artery, breast, musculoskeletal, heart, abdomen, gynecology, obstetrics, and more, meeting multi-specialty needs.

4. Transmission, Storage & Physical Specifications

• Transmission & Storage: WiFi 802.11n/2.4G/5G dual-band (450Mbps) for stable wireless transmission. Images/videos saved in JPG/PNG/MP4/DCM formats, compatible with PACS/HIS systems.
• Power Supply: Built-in 2800mAh lithium battery (2-hour working time), supporting wireless charging for indefinite operation, ideal for long-duration examinations.
• Portability: 156mm×60mm×20mm size, 200g net weight, ergonomic handheld design, easy to carry in a medical bag for bedside, home visit, or field medical services.
• Compatibility: Supports iOS/Android/Windows systems, adapting to smartphones, tablets, and computers for flexible terminal matching.
