Name: VISION7 P Linear Palm Doppler Ultrasound Scanner
Brand: SONOSTAR
SKU: 760
Availability: InStock

Description

1. Core Scanning & Probe Parameters

Foundational hardware that defines balanced imaging performance:

Scanning & Probe Design: Electronic Array and Electronic linear array scanning, equipped with a dual-frequency linear probe (10/14MHz) optimized for diverse superficial imaging needs. The 10MHz frequency balances resolution and penetration for broader applications (e.g., pediatric tissues, musculoskeletal structures), while 14MHz delivers enhanced clarity for small, delicate organs (e.g., thyroid nodules, mammary glands, superficial blood vessels).
Imaging Range: Adjustable linear scanning depth (20-60mm) covers superficial to shallow-medium tissue layers, adapting to scenarios from skin and subcutaneous structures to small organs and shallow vascular networks. Linear L25 field of view (25mm) provides ample coverage for targeted examinations, reducing the need for frequent probe repositioning and improving clinical efficiency.
Signal Processing: Advanced digital signal processing technology ensures high signal fidelity and low noise interference. This enhances the definition of tissue boundaries and micro-structures, critical for detecting early lesions, subtle anatomical variations, and vascular abnormalities.

2. Imaging Quality & Optimization Functions

Comprehensive tools to maximize clarity across clinical scenarios:

Imaging Modes & Foundation: Supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler) modes. 256-level image gray scale accurately reproduces subtle tissue density differences, enabling precise differentiation between healthy and abnormal tissues—essential for accurate diagnosis in specialized fields.
Image Adjustment Suite: Equipped with multi-dimensional optimization features, including Gain (30dB-105dB), 8-level Dynamic Range (40-110), and 5-level Noise Reduction (0-4). These tools allow operators to fine-tune image brightness, contrast, and noise suppression, adapting to tissue-specific properties (e.g., soft glandular tissue, dense muscle, fragile pediatric structures) for optimal visualization.
Vascular Visualization: Enhanced Color and PDI modes provide clear, real-time imaging of blood flow in superficial and shallow-medium vessels (e.g., carotid arteries, peripheral vasculature). This supports accurate assessment of blood flow velocity and patency, aiding in the diagnosis of vascular stenosis, occlusion, or abnormal perfusion.

3. Clinical Applications & Data Management

Specialized features aligned with diverse clinical needs:

Targeted Clinical Use Cases: Designed to excel in a wide range of applications, including thyroid nodule characterization, small organ (parotid, submandibular) imaging, pediatric superficial structure assessment, vascular and carotid diagnosis, mammary gland examination, musculoskeletal injury detection, and neurological (nerve bundle) visualization. It meets the demands of both specialized clinicians and general practitioners.
Measurement Capabilities: Supports precise quantitative measurements (distance, area, angle) for evaluating lesion size, tissue thickness, vascular diameter, and organ dimensions. This data is vital for diagnosis, treatment planning, and long-term follow-up of conditions such as thyroid disorders, carotid artery disease, and musculoskeletal injuries.

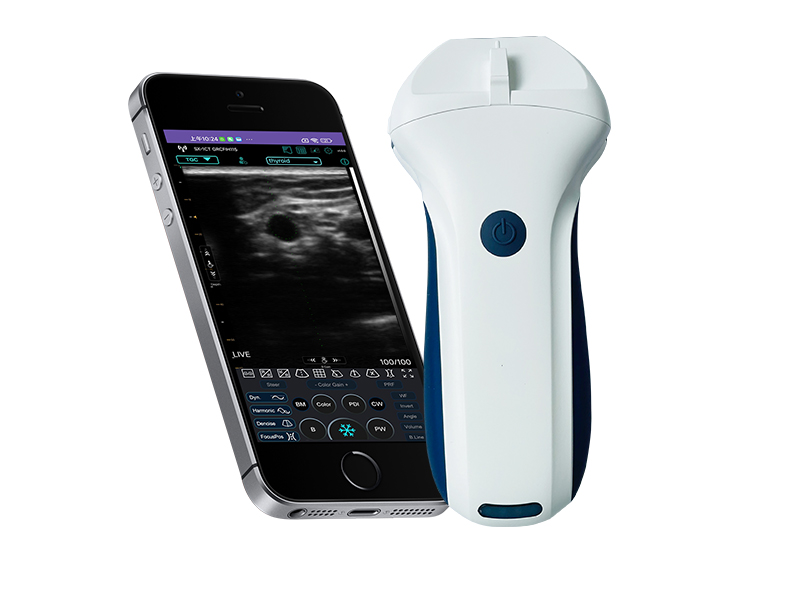

Data Storage & Sharing: Images and videos are directly stored on mobile phones or tablets, eliminating the need for external storage devices. The wireless design facilitates on-site review, quick case sharing with colleagues, and seamless integration with electronic medical records (EMRs), aligning with modern digital healthcare workflows.

4. Power & Physical Specifications

Portability and reliability optimized for clinical versatility:

Power Supply: Built-in 2200mAh lithium battery delivers 3 hours of continuous working time, sufficient for daily clinical shifts, mobile visits, or high-volume specialized clinics. The consistent battery performance ensures uninterrupted use during critical examinations.
Ultra-Portable Design: Compact dimensions (156mm×60mm×20mm) and 230g net weight make it highly portable, fitting easily in a medical bag or pocket. Its ergonomic handheld design reduces operator fatigue during prolonged use, while durable construction withstands the demands of daily clinical environments.
System Compatibility: Seamlessly works with iOS, Android, and Windows operating systems, supporting flexible connection to smartphones, tablets, and computers. This cross-platform adaptability ensures compatibility with existing clinical setups and user preferences, enhancing its practicality across diverse healthcare settings.

The VISION7 P Linear Palm Doppler Ultrasound Scanner combines balanced high-frequency imaging, versatile clinical applicability, and user-centric portability. It is an indispensable tool for radiologists, endocrinologists, vascular surgeons, orthopedists, pediatricians, and general practitioners seeking precise, efficient imaging of superficial to shallow-medium tissues. Whether in a specialized clinic, hospital, or remote field setting, it delivers consistent, high-quality results to support timely and accurate clinical decisions, while its compact design ensures accessibility whenever specialized imaging is required.
