Description
1. Integrated Probe & Superior Imaging
Adopts a 3-in-1 integrated probe design (Convex + Linear + Phased Array), fully meeting diverse clinical examination needs.
Equipped with advanced digital imaging technology, it delivers clear, high-definition images to ensure accurate observation of tissue details and lesions.
2. Cost-Effective & User-Friendly
Boasts excellent cost-effectiveness with no hidden fees. The software is provided free of charge, supporting unlimited user access,
which significantly reduces usage costs for institutions and individuals. It features wireless connectivity and wireless charging,
paired with a simple and intuitive operation design, enabling easy mastery and efficient use.
3. Portable & Multi-Scenario Applicable
With a compact and lightweight structure, it is easy to carry and transport. Widely suitable for emergency rescues, clinical consultations,
outdoor inspections, and veterinary examinations, adapting to various complex usage environments flexibly.
4. Powerful Expansion & System Compatibility
Built on an intelligent terminal platform, it offers robust expansion capabilities in applications, data storage, communication, and printing,
meeting personalized usage needs. Dedicated APPs are developed for iOS, Android, and Windows systems respectively, ensuring optimized adaptation and stable operation on different devices.
5. Multilingual Support
The APP supports 7 languages, including Chinese, English, Italian, Spanish, Russian, German, and Brazilian Portuguese,
facilitating smooth operation for users from different regions and linguistic backgrounds.
I. Core Hardware Parameters
Elements & Channels: 192 elements, 64 channels, ensuring the stability of signal transmission and imaging clarity, providing hardware support for high-quality image generation.
Probe Parameters: Equipped with three types of professional probes, suitable for different clinical examination scenarios. The parameters are shown in the table below:
|
Probe Type
|
Frequency Range
|
Imaging Depth
|
Scanning Angle/Width
|
|
Convex Probe
|
3.2MHz/5.0MHz
|
90mm/160mm/220mm/305mm
|
45°
|
|
Linear Probe
|
7.5MHz/10.0MHz
|
20mm/40mm/60mm/80mm
|
40mm
|
|
Phasedarray Probe
|
2.5MHz/5.0MHz
|
90mm/120mm/140mm/160mm
|
80°
|
Device Size & Weight:
156mm×60mm×20mm, weight only 230g. The extremely lightweight design facilitates handheld operation and mobile carrying,
suitable for multi-scene use such as bedside and outdoor.
II. Battery Life & Charging

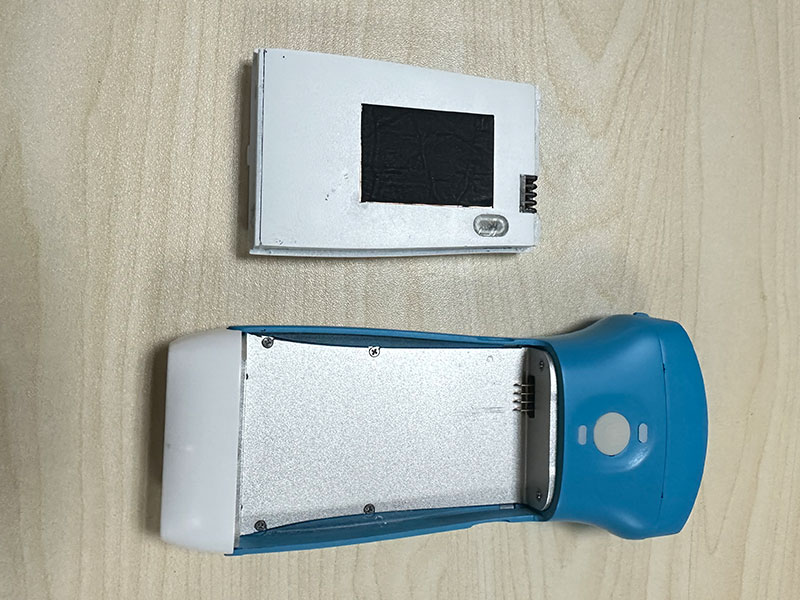

Built-in Battery:
2800mAh high-capacity battery, standard configuration includes 2 batteries. Each battery can work for up to 2 hours,
and dual-battery switching meets the needs of long-time continuous examination.
Charging Method: Supports wireless charging, freeing from cable constraints, making charging more convenient and improving the flexibility of device use.
III. Imaging & Display
Display Modes:
Supports multiple display modes including B-mode, B/M-mode, Color Imaging, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler),
adapting to different tissue imaging needs and clearly presenting lesions and blood flow information.
Image Adjustment Functions:
Equipped with adjustment functions such as Gain, DYN (Dynamic Range), Focus, Depth, Harmonic Imaging, and Denoise,
which can accurately optimize image quality and improve detail recognition.
IV. Data Storage & Transmission
Storage Formats: Supports JPG, PNG static image formats and MP4 dynamic video format, and is compatible with DCM (Digital Imaging and Communications in Medicine) standard format.
