1. Core Scanning & Imaging Parameters

• Scanning & Frequency: Electronic phased array scanning with 64 RT channels for high-quality signal processing. Multi-frequency adaptation – central 2.8MHz, cardiac reverse harmonic 3.6MHz, transcranial fundamental 2.2MHz, matching diverse clinical imaging needs of heart and brain tissues.

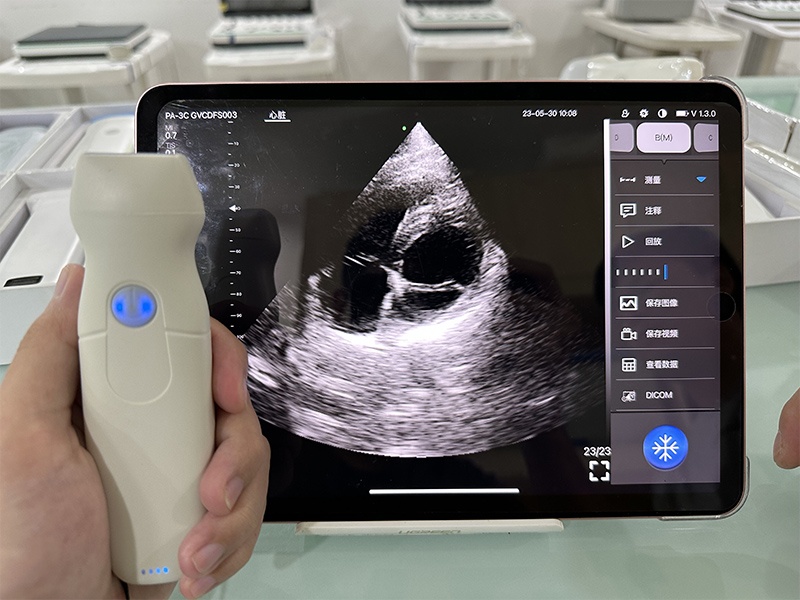

• Imaging Modes: Supports B, B/M, Color, PW (Pulsed Wave), CW (Continuous Wave), and PDI (Power Doppler Imaging) modes, covering static tissue observation, dynamic monitoring, and blood flow detection for multi-dimensional cardiac/transcranial diagnosis.
• Imaging Range & Foundation: 80° display angle provides a wide field of view; adjustable display depth (90/160/200/240mm) adapts to different tissue depths. 15~20 frames/second variable frame rate ensures smooth real-time imaging, capturing subtle dynamic changes of cardiac and transcranial structures.

2. Clinical Functions & Image Optimization

• Image Adjustment: Equipped with comprehensive optimization tools, including Gain (30dB-105dB), 8-level Dynamic Range (40-110), Focus, Depth, Harmonic, and 5-level Noise Reduction (0-4). These tools effectively reduce image noise, balance tissue brightness, and enhance image layering for accurate lesion identification in cardiac and transcranial imaging.
• Clinical Auxiliary Functions: Integrated in-plane/out-of-plane puncture guide lines and automatic blood vessel measurement, improving the accuracy and safety of interventional procedures related to cardiac and transcranial examinations.
• Measurement Functions: Supports Length, Area, Angle, and Heart-related parameters, providing accurate quantitative data to assist in evaluating cardiac structure size, lesion scope, and physiological indicators, meeting specialized diagnostic needs.

3. Transmission, Power & Physical Specifications

• Transmission & Compatibility: WiFi 802.11g/20MHz/5G (450Mbps) for stable wireless data transmission. Compatible with Apple iOS, Android, and Windows systems, supporting flexible connection to smartphones, tablets, and computers, adapting to different clinical usage environments.
• Power Supply: Built-in battery supporting 1.5 hours of continuous working time; charged via USB cable charger, ensuring convenient power replenishment during mobile or emergency use.

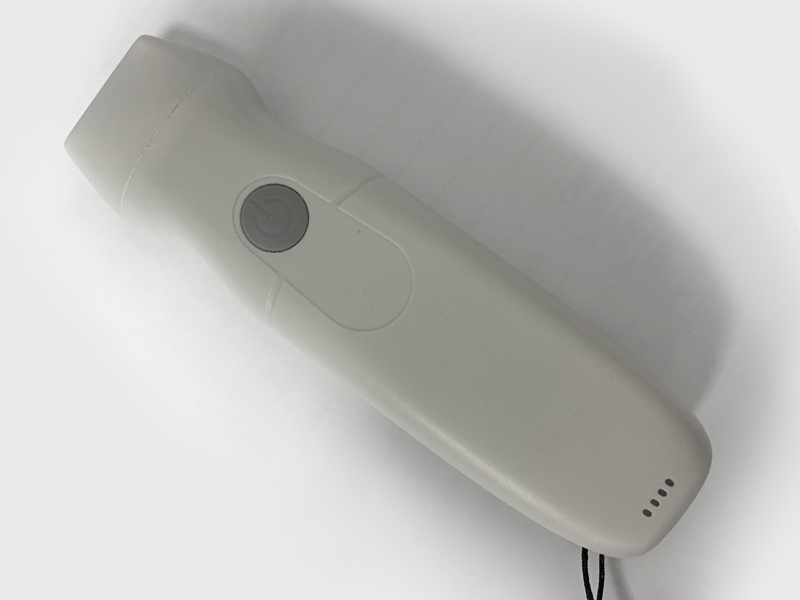

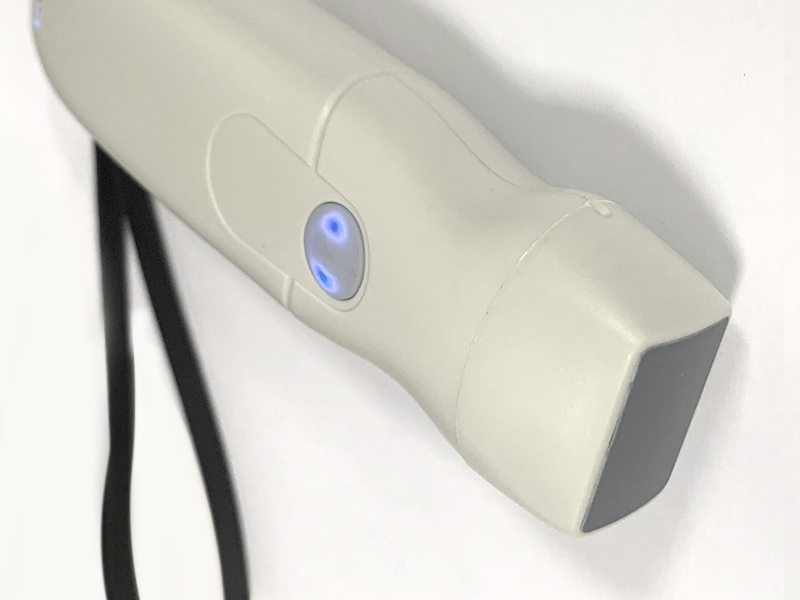

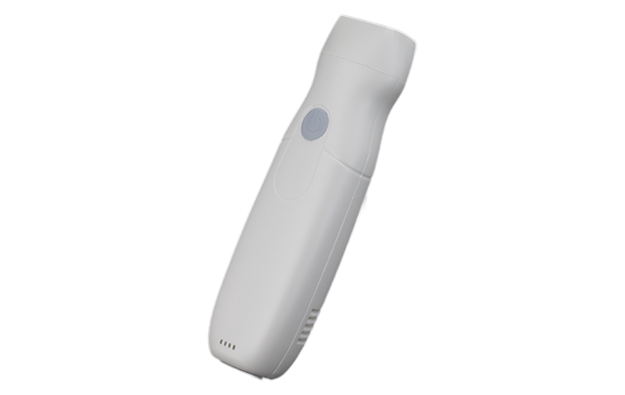

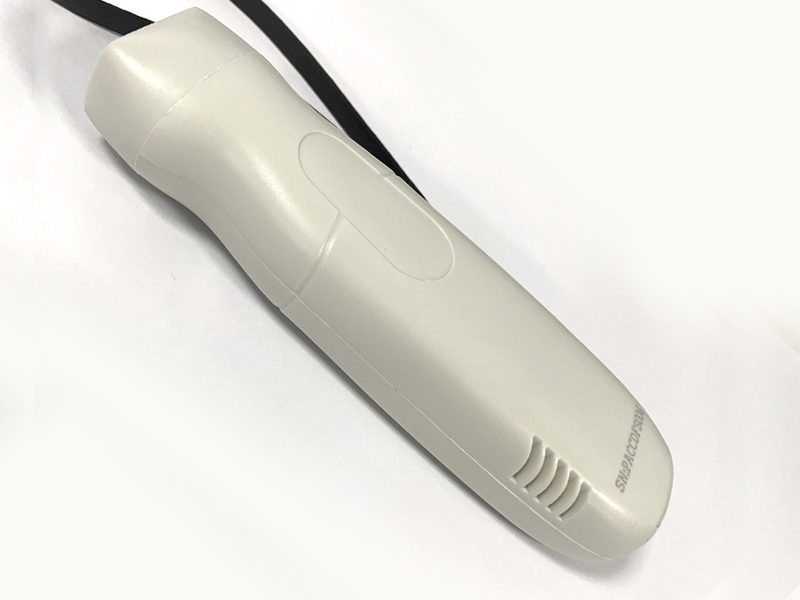

• Portability: Ultra-compact dimension (140mm×60mm×20mm) and 120g lightweight design, ergonomic for one-hand handheld operation. It can be easily carried in a medical bag, suitable for bedside examinations, emergency rescues, and field medical services.

4. Standard & Optional Configurations

• Standard Configuration: 1×Wireless Probe Type Ultrasound Scanner, 1×USB Charging Cable.
• Optional Accessories: Carrying Bag or Aluminium Suitcase (for safe storage and transportation), Stainless Steel Puncture Guide (assisting interventional operations), pre-configured Android/iOS Phone/Tablet, Wireless Power Bank (extending battery life), Tablet Bracket (enabling hands-free operation), and Trolley (mobile operation platform).
