VISION5 MN 2in1 Palm Doppler Ultrasound Scanner

Description

1. Core Scanning & Dual-Probe Parameters

Core hardware and dual-probe specifications that enable multi-scenario imaging flexibility:

Scanning & Probe Configuration: Electronic Array scanning, supporting micro-convex (with cardiac phased array function) and linear array dual modes. 128-element design ensures high signal-to-noise ratio and uniform acoustic beam transmission. Micro-Convex probe (5.0/7.0MHz) excels at deep-medium tissue penetration, while Linear probe (10/12MHz) provides ultra-high resolution for superficial structures.
Imaging Range: Adjustable scanning depth – Micro-Convex (60-160mm) adapts to abdominal, pelvic, and cardiac imaging needs; Linear (20-80mm) covers superficial tissues like skin, muscles, and small organs. Field of view: Micro-Convex R20 (88° arc) for wide-angle deep observation; Linear L40 for focused superficial imaging, balancing coverage and detail.

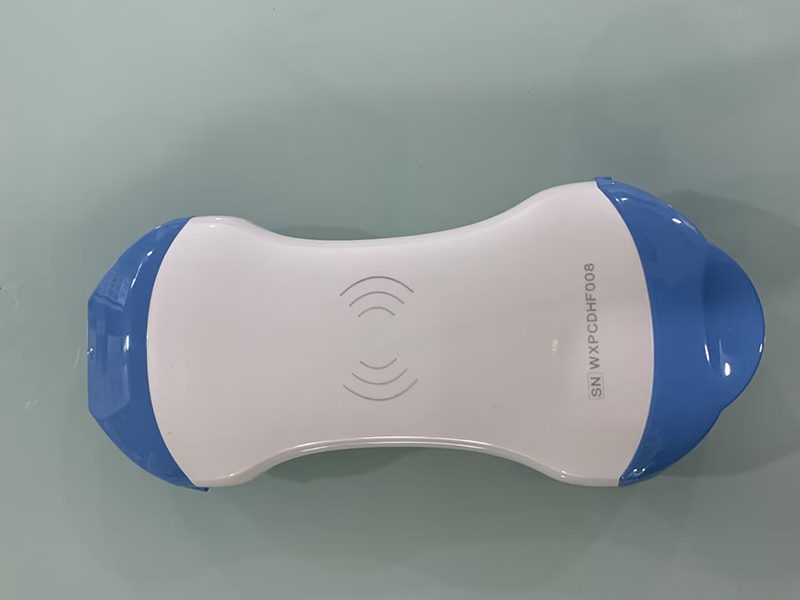

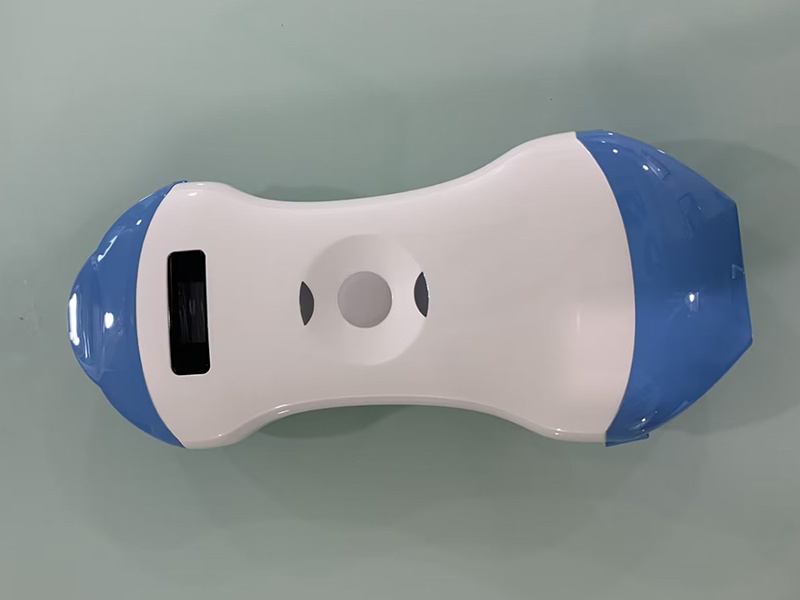

Probe Design: Micro-Convex probe features an ergonomic curved face for tight skin contact and stable acoustic coupling; Linear probe adopts a flat-face design for precise positioning on superficial anatomical sites. Both match the scanner’s weight distribution for comfortable handheld use.

2. Imaging Quality & Optimization Functions

Comprehensive tools to enhance clarity and diagnostic precision for dual-mode imaging:

Imaging Modes & Foundation: Supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler) modes. 18 frames/second (f/s) frame rate ensures smooth real-time imaging, capturing dynamic processes like fetal movement or vascular pulsation. 256-level image gray scale accurately reproduces subtle tissue density differences, aiding in lesion identification.
Image Adjustment: Equipped with multi-dimensional optimization tools, including Gain (30dB-105dB) for brightness regulation, 8-level Dynamic Range (40-110) for enhancing tissue layering, and 5-level Noise Reduction (0-4) for filtering interference. These tools adapt to both micro-convex and linear scanning, ensuring clear imaging in diverse scenarios.

3. Clinical Functions & Data Management

Practical features to improve examination efficiency and data usability:

Measurement Functions: Supports distance, area, obstetric, and cardiac-related measurements, providing accurate quantitative data for evaluating lesion size, organ dimensions, fetal development, and cardiac structure parameters. All measurements comply with clinical standards for reliability.
Data Storage: Images and videos are directly stored on mobile phones or tablets, eliminating the need for additional devices. The storage design facilitates on-site review, quick case sharing with colleagues, and easy archiving for medical records or follow-up comparisons.

4. System Compatibility & Physical Specifications

Cross-system adaptability and portable design optimized for mobile clinical use:

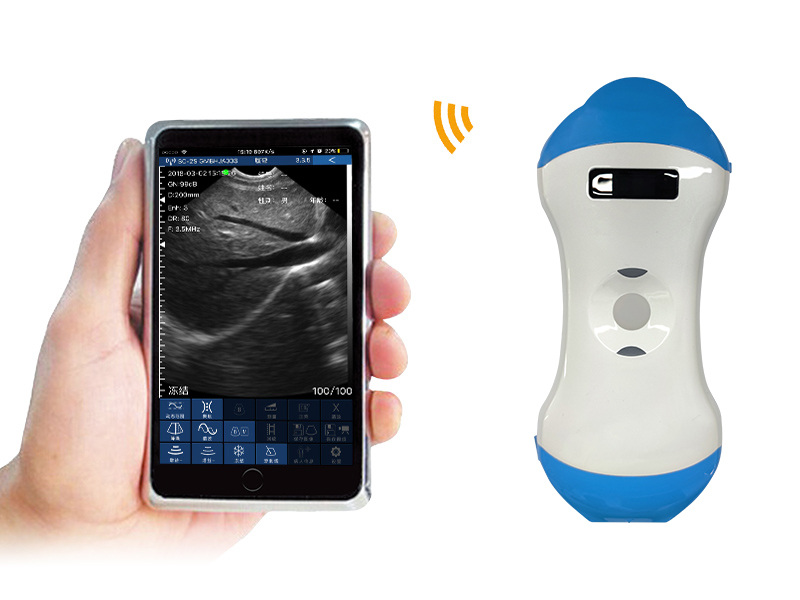

Compatibility & Display: Adapts to smartphone or tablet screens; compatible with iOS, Android, and Windows operating systems, enabling flexible connection to personal or clinical devices and reducing learning costs.
Power Supply: Built-in 2800mAh lithium battery supports 2.5 hours of continuous operation, fully covering daily clinical needs for mobile examinations, home visits, or emergency services.
Physical Dimensions: 156mm×60mm×20mm compact size and 250g net weight, with an ergonomic handheld design. It fits easily in a medical bag, making it ideal for bedside, community healthcare, or field medical scenarios.

The VISION5 MN 2in1 palm Doppler ultrasound scanner integrates dual-probe versatility, high-quality imaging performance, and ultra-portability. It provides stable and precise multi-scenario imaging solutions, balancing deep-medium tissue penetration and superficial tissue resolution. As a reliable tool for medical professionals, it meets the demands of diverse clinical examinations in primary healthcare, clinics, and mobile medical services.
