Description
1. Core Scanning & Probe Parameters
Foundational hardware that ensures high-fidelity imaging performance:
- Scanning & Probe Design: Electronic Array and Electronic linear array scanning, equipped with a 192-element linear probe for enhanced signal capture and processing. Dual-frequency adjustment (7.5MHz/10MHz) adapts to diverse clinical needs: 7.5MHz balances resolution and penetration for medium-superficial tissues, while 10MHz delivers ultra-clear visualization of tiny superficial structures (e.g., thyroid nodules, skin lesions, small vessels).
- Imaging Range: Adjustable linear scanning depth (20-100mm) covers superficial to medium-depth tissue examinations, from skin and subcutaneous structures to deeper small organs. Linear L40 field of view provides expanded coverage, minimizing probe movement and improving examination efficiency for large-area superficial imaging.
- Signal Precision: 192 high-density elements ensure uniform acoustic beam transmission, reducing image distortion and enhancing the clarity of subtle tissue boundaries—critical for identifying early lesions and fine anatomical details.
2. Imaging Quality & Optimization Functions
Comprehensive tools to maximize clarity and diagnostic accuracy:
- Imaging Modes & Foundation: Supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler) modes. 256-level image gray scale accurately reproduces subtle tissue density differences, while the scanner’s optimized signal-to-noise ratio ensures consistent image quality across all scanning depths.
- Image Adjustment: Equipped with multi-dimensional optimization features, including Gain (30dB-105dB), 8-level Dynamic Range (40-110), and 5-level Noise Reduction (0-4). These tools allow operators to fine-tune image brightness, contrast, and clarity, adapting to different tissue types (e.g., dense muscle, delicate glandular tissue) and clinical scenarios for optimal diagnostic outcomes.
- Real-Time Performance: The scanner maintains smooth imaging for dynamic processes like vascular pulsation and muscle movement, supporting timely observation of tissue functionality during examinations.
3. Clinical Functions & Data Management
Practical features tailored to streamline clinical workflows:
- Measurement Capabilities: Supports distance, area, obstetrics, and other quantitative measurements, providing accurate data for evaluating lesion size, tissue thickness, and obstetric indicators (e.g., fetal growth parameters). This quantitative data aids in diagnosis, treatment planning, and follow-up assessments.

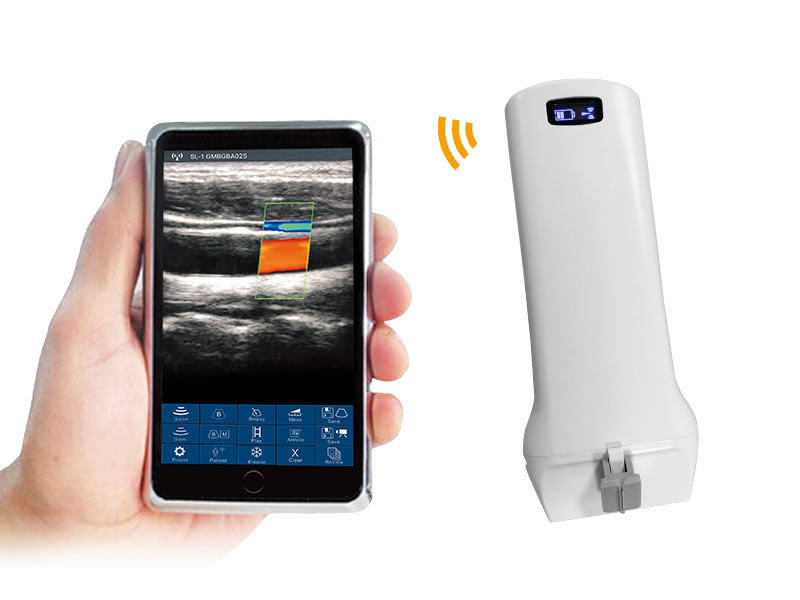

- Data Storage & Sharing: Images and videos are directly stored on mobile phones or tablets, eliminating the need for additional storage devices. The wireless design facilitates on-site review, quick case sharing with colleagues, and easy integration with electronic medical records (EMRs), aligning with modern clinical workflow needs.
- User-Centric Operation: Compatible with smartphone or tablet screens, the scanner leverages intuitive touch-based controls via dedicated apps for iOS, Android, and Windows. This user-friendly interface reduces learning costs and enables quick operation in fast-paced clinical environments.
4. Power & Physical Specifications
Portability and endurance optimized for extended clinical use:
- Power Supply: Built-in 5600mAh high-capacity lithium battery delivers 5 hours of continuous working time—ideal for long shifts, mobile home visits, or field medical services without frequent charging. The reliable battery performance ensures uninterrupted use during critical examinations.

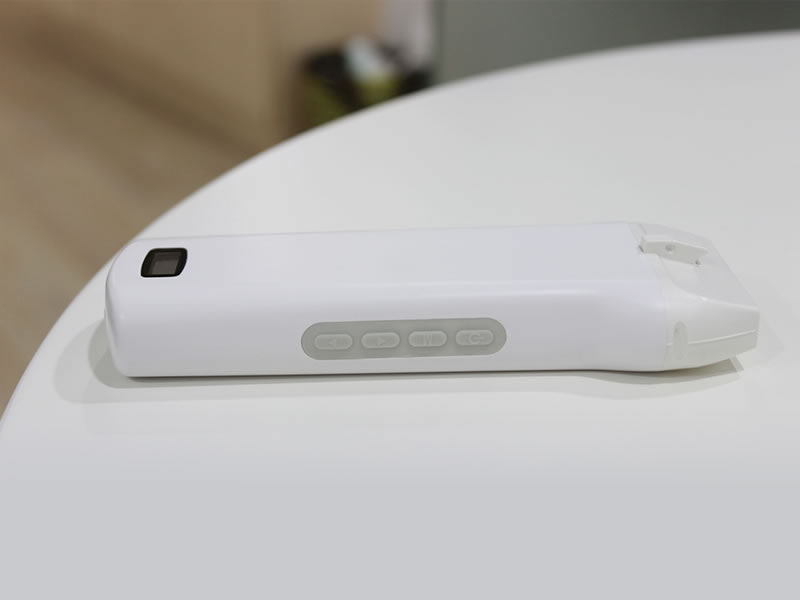

- Ultra-Portable Design: Compact dimensions (156mm×60mm×20mm) and 200g net weight make it easy to carry in a medical bag or pocket. Its lightweight, ergonomic design reduces operator fatigue during prolonged use, while the durable construction withstands the demands of daily clinical environments.
- System Compatibility: Seamlessly works with iOS, Android, and Windows operating systems, supporting flexible connection to a wide range of devices. This cross-platform adaptability ensures compatibility with existing clinical setups and user preferences, enhancing its practicality in diverse healthcare settings.
The VISION6 L/P Linear Palm Doppler Ultrasound Scanner integrates high-resolution imaging, extended battery life, and user-friendly design to meet the diverse needs of modern medical practice. It balances precision, portability, and operational convenience—making it a reliable tool for medical professionals in primary care, radiology, orthopedics, and obstetrics. Whether in a clinic, emergency room, or remote field setting, it delivers consistent, high-quality imaging to support timely and accurate clinical decisions.
