Description
1. Core Probe & Scanning Parameters
Dual-probe configuration and scanning specifications that determine multi-scenario adaptability:
-
Scanning Mode & Hardware: Electronic array scanning; 80 high-precision elements with 16 RF channels, ensuring accurate signal capture and efficient processing with minimal distortion.
-
Probe Frequency: Dual-probe adjustable – Convex (3.2MHz/4MHz) for deep tissue penetration, Linear (7.5MHz/10MHz) for high-resolution superficial imaging.
-
Scanning Range: Convex (depth: 90/160/200/240mm, angle: 60°, head radius: 60mm); Linear (depth: 20/40/60/80mm, width: 40mm), covering diverse tissue depth and scope needs.
-
Imaging Foundation: 18 frames/second image frame rate, ensuring smooth real-time imaging for dynamic tissue observation.
2. Imaging Modes & Optimization Functions
Comprehensive imaging modes and adjustment tools for enhanced clarity and diagnosis support:
-
Display Modes: B, B/M, B+Color, B+PDI (Power Doppler Imaging), B+PW (Pulsed Wave Doppler), covering static observation, dynamic monitoring, and blood flow detection.
-
Image Adjustment: BGain, TGC (Time-Gain Compensation), DYN (Dynamic Range), Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF (Pulse Repetition Frequency) – multi-dimensional optimization for tailored imaging effects.
-
Cineplay Function: Auto and manual playback with adjustable frames (100/200/500/1000), facilitating frame-by-frame review of key imaging details.
3. Clinical Auxiliary & Data Management
Practical auxiliary tools and data handling capabilities for clinical efficiency:
-
Puncture Assist: In-plane/out-of-plane puncture guide lines and automatic blood vessel measurement, improving interventional procedure accuracy and safety.
-
Measurement Functions: Supports Length, Area, Angle, Heart rate, and Obstetric parameters (e.g., fetal biometrics), providing quantitative data for precise diagnosis.
-
Image Storage: Saves images/videos in JPG, PNG, MP4, DCM formats, compatible with standardized medical data management and easy archiving.
4. System Compatibility & Physical Specifications
Cross-system adaptability and portable design optimized for mobile clinical scenarios:
-
Working System: Compatible with Apple iOS, Android, and Windows, enabling flexible connection to smartphones, tablets, and computers.
-
Physical Dimensions: 11cm×6cm×2cm compact size, 120g ultra-lightweight, ergonomic design for comfortable handheld operation and easy portability.

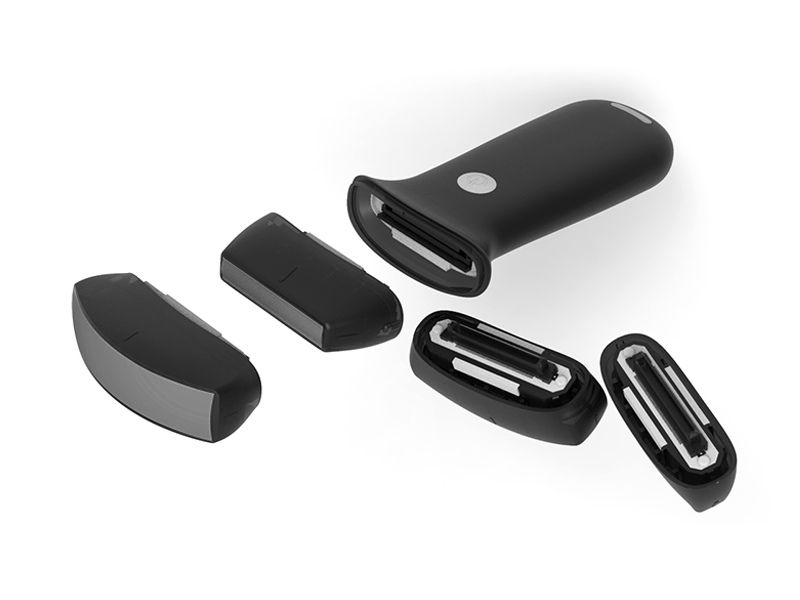

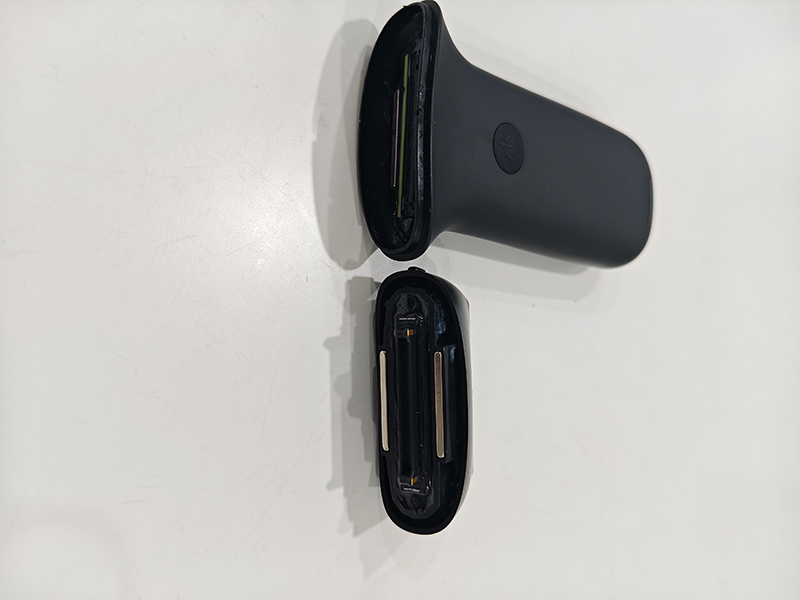

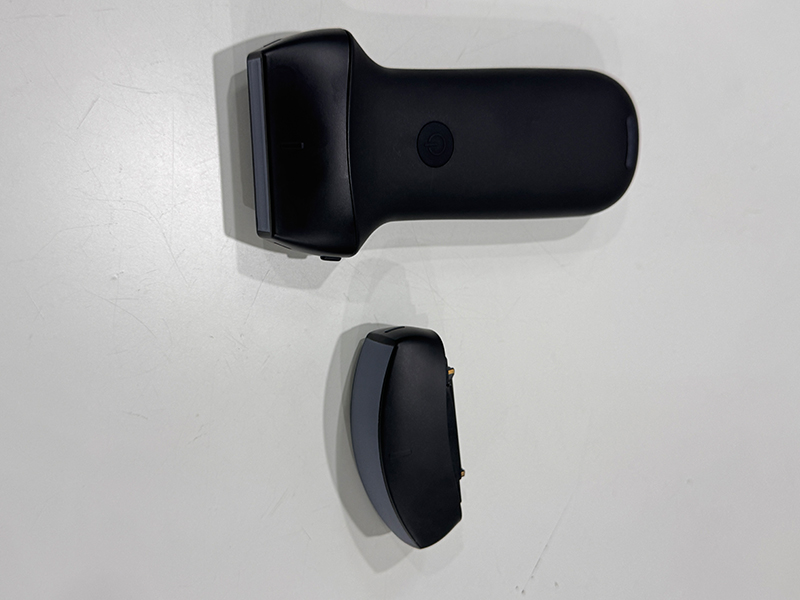

The VISION3 CL dual-probe ultrasound system integrates convex and linear scanning advantages, with comprehensive imaging functions and ultra-portable design. It provides reliable, multi-scenario imaging solutions for clinics, mobile medical services, and primary healthcare, balancing diagnostic precision and operational flexibility.
