Description
1. Core Hardware Configuration
The VISION8 CL P is equipped with a high-performance hardware platform that lays a solid foundation for stable signal transmission and high-quality imaging. Its core hardware parameters are summarized in the following table, covering key indicators such as elements, channels, probes, and physical specifications:
|
Hardware Parameter
|
Detailed Specifications
|
|---|---|
|
Elements
|
192 elements, ensuring high-density signal acquisition for clear and detailed imaging
|
|
Channels
|
64 channels, supporting stable and efficient signal transmission to optimize imaging speed and quality
|
|
Scan Mode
|
Electronic Array, Electronic Convex Scanning, Linear Array Scanning
|
|
Probe Frequency
|
Convex/Phasedarray Probe: 3.2MHz/5.0MHz; Linear Probe: 7.5MHz/10MHz
|
|
Scanning Depth
|
Convex Probe: 90mm-305mm; Linear Probe: 20mm/40mm/60mm/100mm (adjustable)
|
|
Scan Angle & Width
|
Convex Probe: 45°; Phasedarray Probe: 60°; Linear Probe: 40mm scan width
|
|
Image Gray Scale
|
256 levels, enabling accurate presentation of tissue density differences
|
|
Size
|
156mm×60mm×20mm, compact and easy to hold
|
|
Net Weight
|
250 grams, lightweight design for convenient portability and long-time handheld operation
|
|
Battery Capacity
|
Built-in lithium battery, 2800mAh per battery
|
|
Battery Working Time
|
2 hours per battery; supporting 4 hours of continuous use
|
|

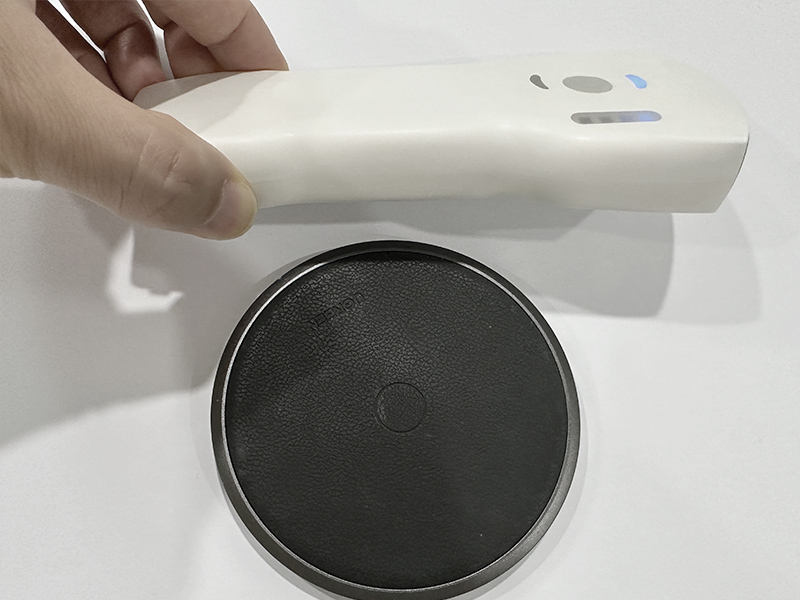

Charging Method
|
Wireless charging, supporting indefinite extension of working time with continuous charging
|
|
WiFi Type
|
802.11n/2.4G/5G dual-band, maximum transmission rate 450Mbps
|

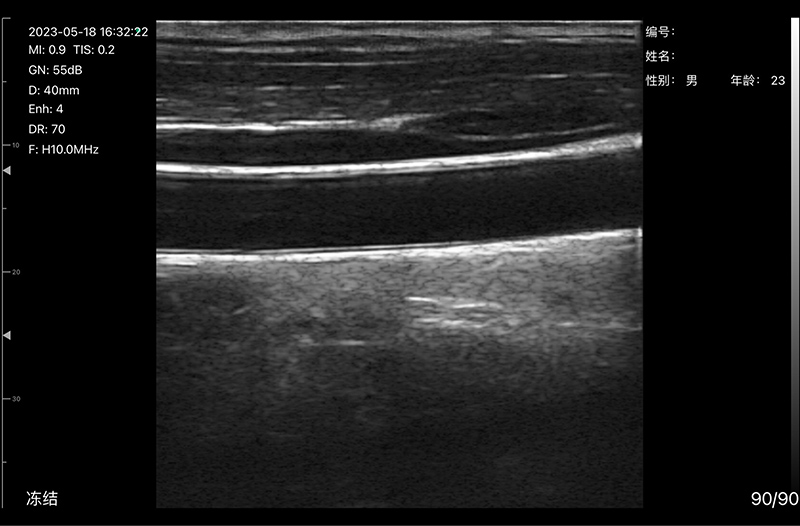

The 192-element and 64-channel configuration ensures that the VISION8 CL P can capture weak ultrasound signals accurately, while the multi-probe and multi-frequency design adapts to different clinical scenarios. The convex and phasedarray probes with 3.2MHz/5.0MHz frequency are suitable for deep tissue imaging, such as abdominal and obstetric examinations, with a maximum scanning depth of 305mm for the convex probe. The linear probe with 7.5MHz/10MHz high frequency is ideal for superficial tissue imaging, such as vascular and musculoskeletal examinations, with adjustable depth to meet the needs of different superficial structures.
2. Imaging Performance & Display Functions
The VISION8 CL P boasts excellent imaging performance, supported by a full range of display modes and precise image adjustment functions, ensuring clear, stable, and detailed imaging effects for clinical diagnosis.
2.1 Display Modes

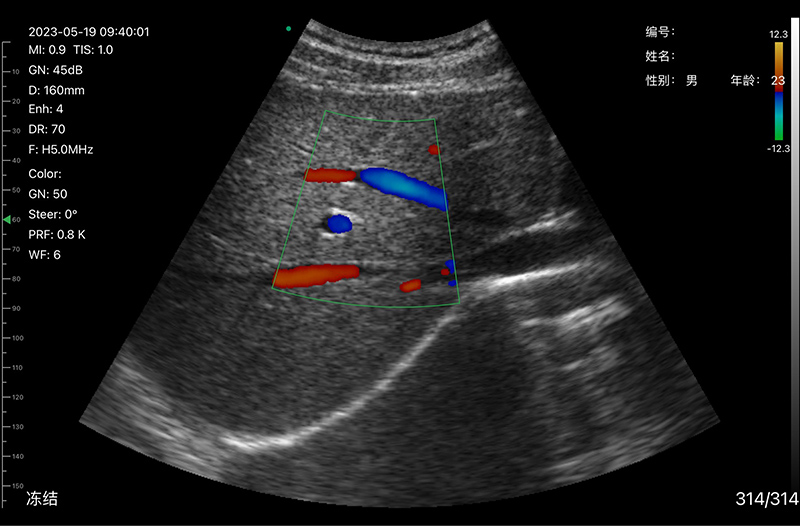

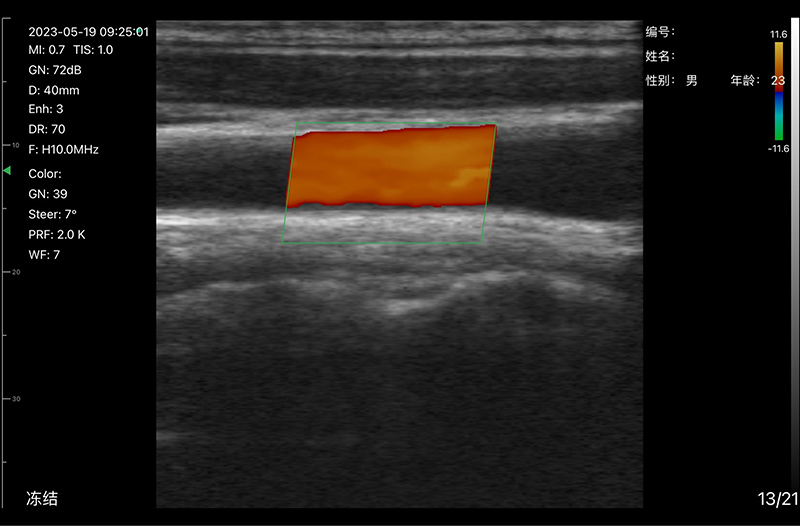

The system supports multiple imaging display modes, including B-mode, B/M-mode, Color Imaging, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler). B-mode provides real-time two-dimensional gray-scale imaging of tissues, laying the foundation for basic clinical observation; B/M-mode combines B-mode imaging with M-mode time-axis display, suitable for observing dynamic changes of moving tissues such as the heart and blood vessels; Color Imaging and PDI can clearly display blood flow direction, velocity, and distribution, helping to identify abnormal blood flow signals; PW is used for accurate measurement of blood flow velocity, providing quantitative data support for vascular disease diagnosis.
2.2 Image Adjustment Functions
To optimize imaging quality for different patients and examination sites, the VISION8 CL P is equipped with a comprehensive set of image adjustment functions, with precise parameter adjustability to meet personalized clinical needs:
-
Gain: Adjustable range 30dB-105dB, enabling precise adjustment of image brightness to highlight tissue details in different depth layers.
-
Focus: Support for multi-level focus adjustment, ensuring clear imaging of the target area by concentrating ultrasound energy on the region of interest.
-
Reverse Pulse Harmonics: Effectively reduces near-field noise and improves image contrast, enhancing the display of subtle lesions.
-
Noise Reduction: 5-level adjustable (0-1-2-3-4), with increasing noise reduction intensity from level 0 to 4, effectively filtering out interference signals to ensure image stability.
-
Dynamic Range: 8-level adjustable (40/50/60/70/80/90/100/110), allowing adjustment of the range of gray-scale levels displayed in the image, balancing the display of high-density and low-density tissues.
With 256-level image gray scale, the system can accurately reproduce the density differences of various tissues, enabling doctors to distinguish between normal tissues and lesions more easily. The combination of multiple adjustment functions ensures that the VISION8 CL P can obtain optimal imaging effects in different clinical scenarios, providing reliable visual support for accurate diagnosis.
3. Clinical Auxiliary Functions
The VISION8 CL P is equipped with a variety of clinical auxiliary functions, including precise measurement tools and professional puncture auxiliary functions, to improve the efficiency and accuracy of clinical diagnosis and interventional operations.
3.1 Measurement Functions
The system has built-in rich measurement functions, covering distance, area, obstetric, and other common clinical measurement items. The distance measurement can accurately measure the length and thickness of tissues, suitable for evaluating the size of lesions and the thickness of organ walls; the area measurement supports the calculation of irregular tissue areas, helping to assess the scope of lesions; the obstetric measurement function includes fetal biparietal diameter, head circumference, abdominal circumference, femur length, and other routine obstetric parameters, providing accurate data support for prenatal examination and fetal development evaluation. All measurement results comply with medical measurement standards, ensuring the reliability of diagnostic data.
3.2 Puncture Auxiliary Function
For interventional clinical scenarios, the VISION8 CL P is equipped with a professional puncture auxiliary function, which includes In-Plane puncture guide line, Out-Plane puncture guide line, and automatic vascular measurement function. The In-Plane and Out-Plane puncture guide lines can accurately guide the puncture needle to the target area, improving the accuracy and safety of puncture operations; the automatic vascular measurement function can quickly and accurately measure vascular diameter, blood flow velocity, and other parameters, providing a basis for vascular puncture and interventional treatment. These functions make the VISION8 CL P suitable for interventional operations such as percutaneous puncture and vascular catheterization, expanding its clinical application scope.
4. Data Storage & Transmission
The VISION8 CL P is equipped with a comprehensive data management system, supporting multiple formats of image and video storage, as well as efficient wireless transmission, facilitating clinical data archiving, sharing, and remote consultation.
4.1 Storage Functions
The system supports storage of images and videos in multiple formats, including JPG, PNG, MP4, and DCM. JPG and PNG are suitable for static image storage and quick sharing; MP4 is used for dynamic video storage, enabling the recording of the entire examination process; DCM (Digital Imaging and Communications in Medicine) is the standard format for medical imaging, facilitating the integration of data into hospital information systems (HIS) and picture archiving and communication systems (PACS) for standardized data management. Data can be stored in mobile phones and tablet PCs, allowing for convenient data carrying and on-site review.
4.2 Playback & Transmission
The system supports both manual and automatic playback modes, with adjustable playback frames (100/200/500/1000 frames), enabling doctors to review the examination process frame by frame and capture key imaging details. In terms of data transmission, the 802.11n/2.4G/5G dual-band WiFi module supports a maximum transmission rate of 450Mbps, realizing high-speed wireless transmission of images and videos. This allows for real-time data sharing between the device and computers, tablets, and other terminal devices, facilitating remote consultation and multi-departmental collaboration.
5. System Compatibility & Portability
The VISION8 CL P features wide system compatibility and excellent portability, adapting to different usage scenarios and terminal devices, and improving the flexibility of clinical application.
5.1 System Compatibility

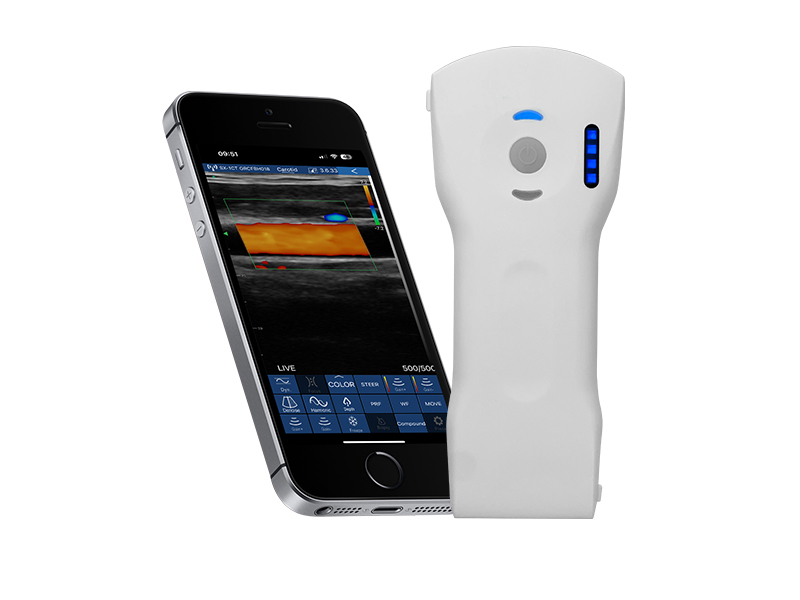

The system supports three major operating systems: iOS, Android, and Windows, and can be connected to various terminal devices such as smartphones, tablets, and computers. This cross-system compatibility ensures that the VISION8 CL P can be used with different devices according to clinical needs, avoiding the limitations of a single operating system and improving the convenience of use.
5.2 Portability

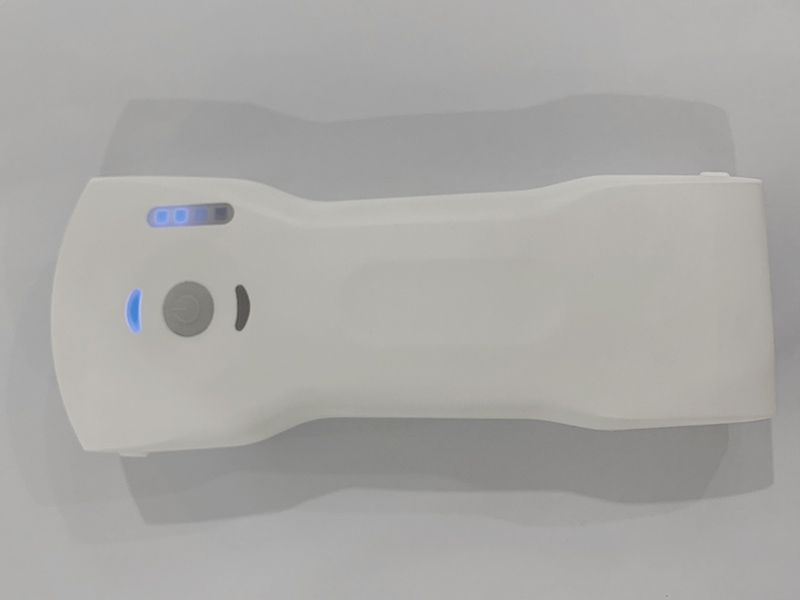

With a size of 156mm×60mm×20mm and a net weight of 250 grams, the VISION8 CL P is extremely compact and lightweight, making it easy to carry in a medical bag or handheld for a long time. The built-in 2800mAh battery and wireless charging function support long-term mobile use, without being restricted by power sockets. This portability makes the VISION8 CL P particularly suitable for emergency rescues, outdoor medical services, and on-site examinations in remote areas, providing timely and professional imaging support for medical work in various environments.
6. Summary
The VISION8 CL P ultrasound system integrates advanced hardware configuration, excellent imaging performance, and rich clinical functions, with the advantages of portability, flexibility, and high cost-effectiveness. Its 192-element and 64-channel hardware platform, multi-probe and multi-frequency design, and comprehensive image adjustment functions ensure high-quality imaging effects for different clinical scenarios. The built-in measurement and puncture auxiliary functions improve the efficiency and accuracy of clinical diagnosis and interventional operations, while the multi-format storage and high-speed wireless transmission facilitate data management and sharing. With wide system compatibility and excellent portability, the VISION8 CL P is applicable to clinics, emergency rescues, outdoor medical services, and other multiple scenarios, providing reliable and professional medical imaging solutions for medical institutions at all levels. Whether in routine clinical examinations or emergency medical services, the VISION8 CL P can play an important role, helping to improve the level of medical diagnosis and service efficiency.
