Description
Core Advantages
- Ultra-competitive pricing with exceptional cost performance for professional wireless clinical ultrasound diagnosis
- Wireless ultrasound probe connection, enabling unrestricted and flexible clinical operation for POC ultrasound scenarios
- Supports multi-modal ultrasound imaging modes including B, B/M, B+Color Doppler, B+PDI (Power Doppler Imaging), B+PW (Pulsed Wave Doppler)
- Windows-based operating system for easy expansion of professional functions such as ultrasound remote diagnosis and custom workflow development
- Compatible with various USB inkjet/laser printers for convenient ultrasound image and report printing
Technical Specifications
1. Display Parameters
- Screen: 15-inch LCD display (optimized for clear ultrasound image visualization)
2. Ultrasound Imaging & Circuit Core Parameters
- Imaging Modes: Professional ultrasound modes – B, B/M, B+Color Doppler, B+PDI, B+PW
- Ultrasound Circuit Board Channels: 32/64 channels (configurable per ultrasound probe model)
- Image Frame Rate: 18 frames/second (stable for real-time clinical ultrasound scanning)
- Probe Connection: Wireless smart connection for POC ultrasound on-site flexible operation
3. Ultrasound Probe Key Specifications
（Multi-type probes for diverse clinical ultrasound scenarios, core parameters per probe model）
- Probe Type: Convex, Microconvex, Linear, Small Linear, Transvaginal; upcoming Phased Array probe; single-head or dual-head (dual-head optional from the above probe types)
- Probe Element Count: 128/192 piezoelectric elements (per ultrasound probe model, ensuring high-definition ultrasound imaging)
- Probe Frequency, Scan Depth & Scanning Angle/Width:
- Convex Probe: 3.5MHz/5MHz | 90/160/220/305mm | 60° (suitable for abdominal ultrasound)
- Linear Probe: 7.5MHz/10MHz | 20/40/60/100mm | 40mm (suitable for MSK/ superficial tissue ultrasound)
- Small Linear Probe: 10MHz/14MHz | 20/30/40/55mm | 25mm (suitable for high-precision superficial ultrasound)
- Microconvex Probe: 3.5MHz/5MHz | 90/130/160/200mm | 88° (suitable for pediatric/ small organ ultrasound)
- Transvaginal Probe: 6.5MHz/8MHz | 40/60/80/100mm | 149° (suitable for gynecological obstetric ultrasound)
4. Ultrasound Image Adjustment & Post-Processing
- Image Adjustment Functions: BGain, TGC, DYN, Focus, Depth, Harmonic Imaging, Denoise, Color Gain, Steer, PRF (full coverage of professional ultrasound image optimization)
- Cineplay: Auto & manual modes, configurable frame counts (100/200/500/1000) for ultrasound image playback and analysis
5. Clinical Ultrasound Auxiliary Functions
- Puncture Assist: In-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement (for interventional ultrasound procedures)
- Clinical Measurement: Multi-dimensional measurement including Length, Area, Angle, Heart Rate, Obstetrics (tailored for obstetric/ cardiovascular/ general ultrasound)
6. Data Storage & Output (Ultrasound Image/Report)
- Image Save Formats: JPG, AVI, DICOM ultrasound imaging format (compliant with clinical PACS system docking)
- Built-in Storage Capacity: 120G (for large-scale ultrasound image and case data storage)
- Print Compatibility: Works with most USB inkjet/laser printers for direct ultrasound image and clinical report printing
7. Operating System & Functional Expansion
- OS: Windows system (compatible with third-party ultrasound remote diagnosis software for seamless installation and operation)
8. Battery Life & Charging (Wireless Ultrasound Probe + Host)
- Built-in Battery Working Time: Probe 2~5 hours (varies by probe model and continuous scanning status); Host 2 hours
- Probe Charging: USB charging / wireless charging, full charge time only 2 hours (fast charging for clinical on-site use)
9. Physical Dimensions & Weight
- Dimension (Host): L362×W340×H50mm
- Net Weight (Host): 4Kg (portable design for POC ultrasound on-site operation)
Standard Configuration

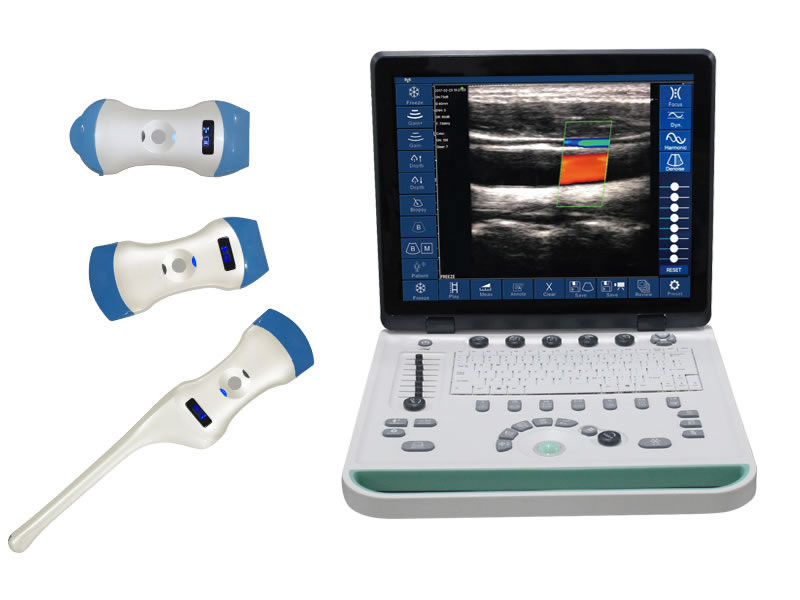

- 1 x Wireless Ultrasound Diagnostic System Host
- 1 x Dual-head wireless ultrasound probe (single-head ultrasound probe optional with a more favorable price)
- Complete set of professional accessories & packaging (trolley case/ draw bar box optional for packaging)
Optional Accessories
- Additional wireless ultrasound probes (all types available)
- Ultrasound puncture kit (for interventional ultrasound)
- Professional ultrasound trolley
- USB inkjet/laser printer (for ultrasound report printing)
- Wireless charger for ultrasound probe
