Description
1. Core Scanning & Probe Parameters
Foundational hardware and imaging capabilities that ensure high-fidelity signal processing:

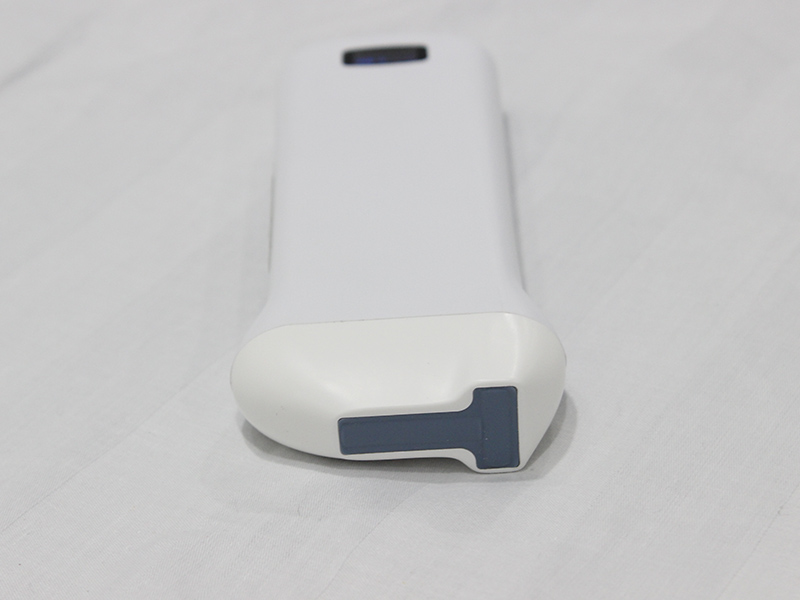

- Scanning & Probe Design: Electronic array scanning with a T-type biplane linear transducer, enabling dual-plane imaging for comprehensive observation of target tissues. 7.5MHz/10MHz dual-frequency adjustment—7.5MHz for balanced resolution and penetration, 10MHz for ultra-clear superficial structure visualization.
- RF Circuit Channels: Multiple channel options (16/32/64) to match different imaging precision needs, with higher channel counts delivering more detailed signal processing and reduced image distortion.
- Imaging Range: Adjustable scan depth (20/40/60/100mm) adapting to superficial to medium-depth tissue examinations; 18 frames/second image frame rate ensures smooth real-time imaging for dynamic processes like vascular pulsation.
2. Imaging Quality & Optimization Functions
Comprehensive tools to enhance clarity and diagnostic accuracy:
- Imaging Modes: Supports B, B/M, B+Color, B+PDI (Power Doppler Imaging), and B+PW (Pulsed Wave Doppler) modes, covering static tissue observation, dynamic monitoring, and blood flow detection for multi-dimensional diagnosis.
- Image Adjustment: Equipped with a full suite of optimization tools, including BGain (30dB-105dB), TGC (Time-Gain Compensation), 8-level Dynamic Range (40-110), Focus, Depth, Harmonic, 5-level Noise Reduction (0-4), Color Gain, Steer, and PRF. These functions effectively reduce noise, balance tissue brightness, and enhance image layering.
- Cineplay & Data Storage: Auto/manual Cineplay with adjustable frames (100/200/500/1000) for frame-by-frame review of key details; images/videos saved in JPG, MP4, PNG, and DCM formats, ensuring compatibility with hospital PACS systems for standardized data management.
3. Clinical Functions & Operational Convenience
Practical features tailored to clinical workflow needs:
- Puncture Assistance: In-plane/out-of-plane puncture guide lines and automatic blood vessel measurement, improving the precision and safety of interventional procedures (e.g., vascular puncture, small organ biopsy).
- Measurement Capabilities: Supports Length, Area, Angle, heart rate, and Obstetric parameters, providing accurate quantitative data to assist in evaluating lesion size, tissue thickness, and physiological indicators.
- Wireless Connectivity: WiFi 802.11g/20MHz/5G (450Mbps) for stable wireless data transfer, enabling cable-free operation and seamless integration with mobile devices.
4. Power & Physical Specifications
Portable design optimized for mobile clinical use:
- Power Supply: 3~5 hours of battery working time (varies by probe and scanning mode), fully covering long-duration examinations. Supports USB and wireless charging (2-hour full charge), ensuring flexible power replenishment.

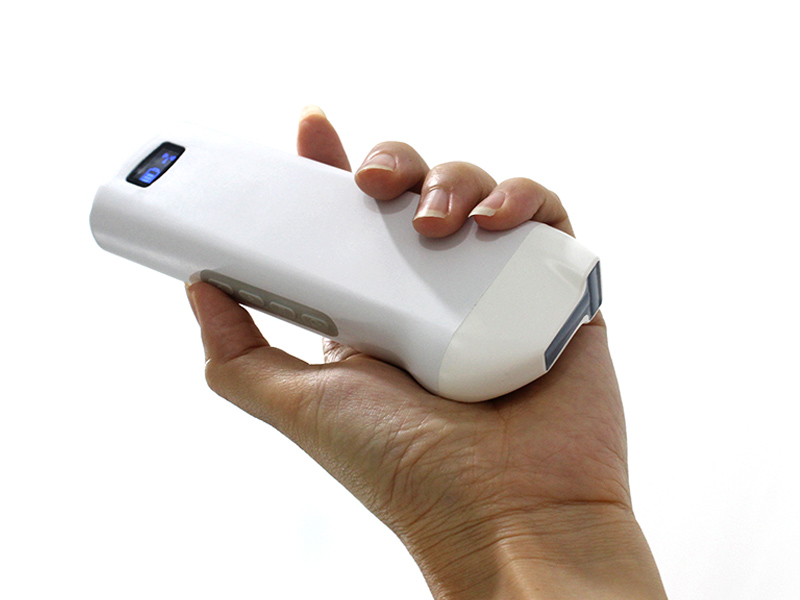

- Portability: Compact dimensions (156×60×20mm) and 200g lightweight design, ergonomic for one-hand handheld operation. It can be easily carried in a medical bag, suitable for bedside, home visit, and field medical services.
- System Compatibility: Works seamlessly with Apple iOS, Android, and Windows operating systems, supporting connection to smartphones, tablets, and computers for flexible terminal matching.

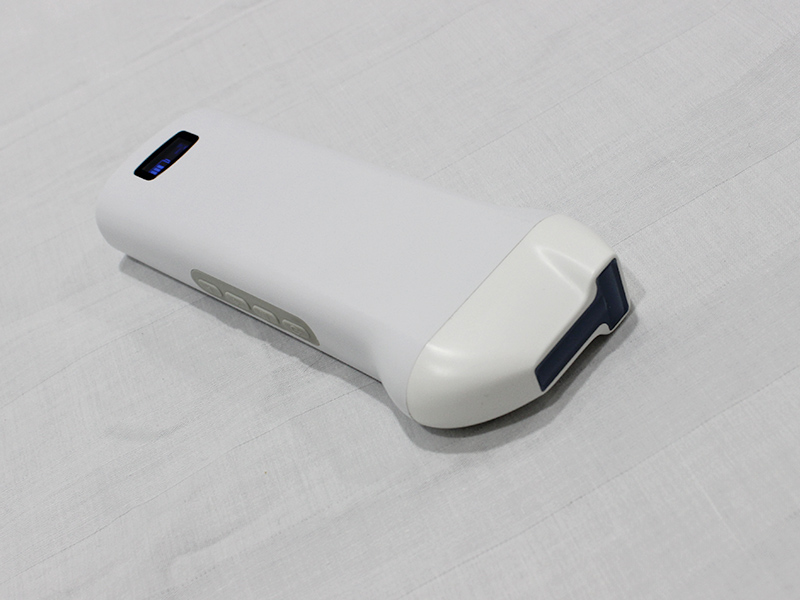

The VISION6 LT biplane linear palm Doppler ultrasound scanner integrates biplane imaging, multi-channel signal processing, and long-lasting portability. It delivers reliable, high-quality diagnostic solutions for diverse clinical scenarios, balancing precision, convenience, and adaptability—making it an indispensable tool for medical professionals seeking efficient and flexible ultrasound imaging.
