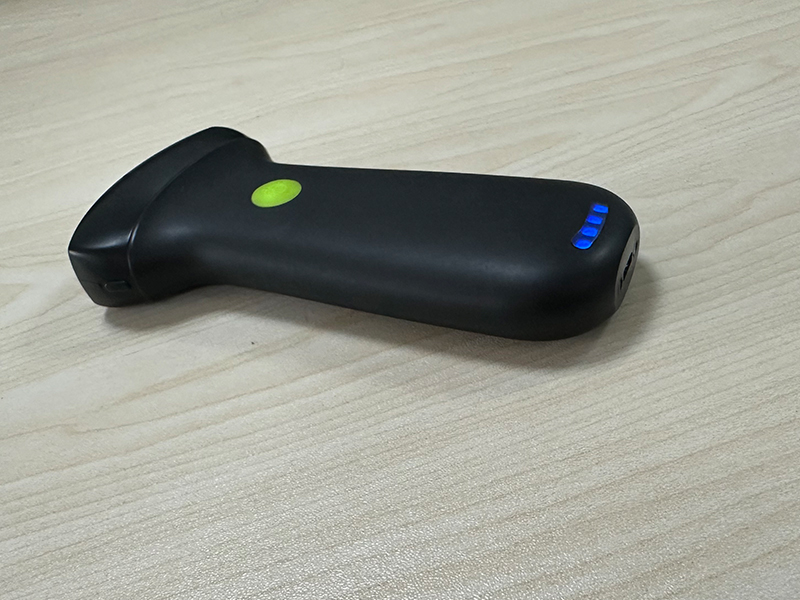

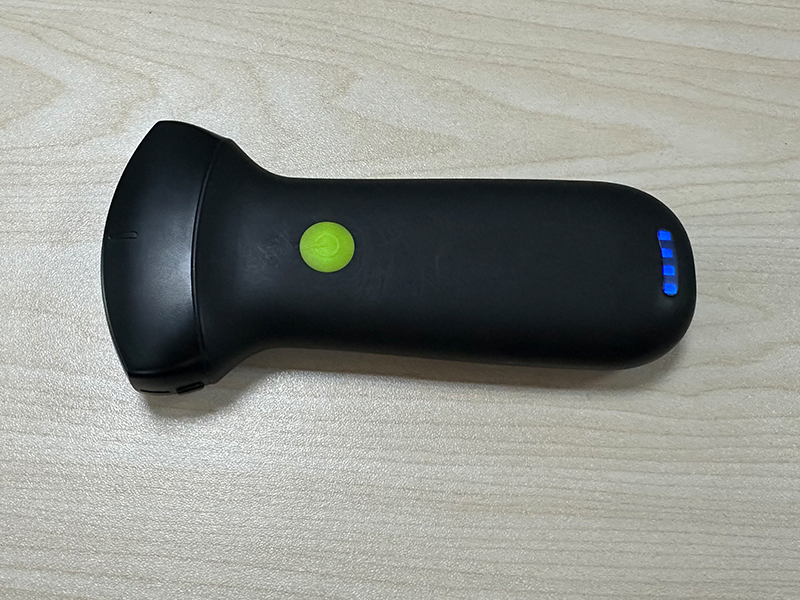

Name: VISION7 C convex palm doppler ultrasound scanner
Brand: SONOSTAR
SKU: 777
Availability: InStock

Description

1. Core Scanning & Convex Probe Parameters

Foundational hardware that ensures reliable deep-tissue imaging performance:

Scanning & Probe Design: Electronic Array and Electronic Convex array scanning, equipped with a 128-element high-precision convex probe. The dense element count enables uniform acoustic beam transmission, minimizing distortion and enhancing signal fidelity—critical for visualizing deep anatomical structures. The dual-frequency configuration (3.2/5.0MHz) adapts to diverse clinical needs: 3.2MHz provides strong penetration (up to 305mm) for deep tissues like the liver, kidneys, mid-term fetus, and lungs; 5.0MHz balances resolution and penetration for medium-depth structures such as the gallbladder, pelvic organs, and urinary system.
Imaging Range: Adjustable convex scanning depth (90-305mm) covers deep to ultra-deep tissue examinations, eliminating the need for multiple devices for different depth requirements. Convex R60 field of view (60° arc) offers a wide imaging scope, facilitating comprehensive observation of large abdominal, pelvic, or thoracic regions without frequent probe repositioning—improving examination efficiency.

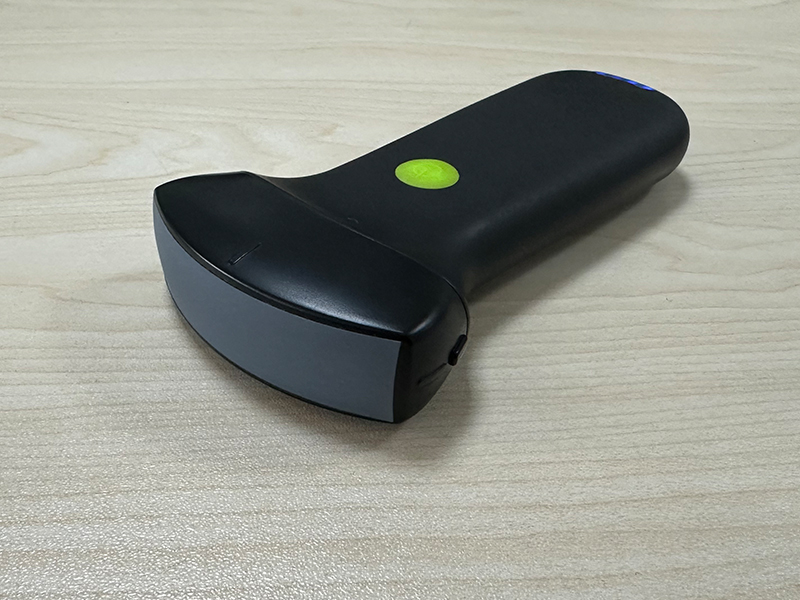

Probe Ergonomics: The convex probe’s curved design ensures close skin contact and optimal acoustic coupling, even on irregular body surfaces (e.g., abdominal contours, thoracic walls). This design enhances image consistency and reduces operator effort during prolonged scans.

2. Imaging Quality & Optimization Functions

Comprehensive tools to maximize clarity for deep and medium-depth tissues:

Imaging Modes & Foundation: Supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler) modes. 256-level image gray scale accurately reproduces subtle tissue density differences, enabling detection of small lesions or structural abnormalities in deep tissues (e.g., kidney stones, liver nodules, fetal anatomical details). The scanner’s optimized signal-to-noise ratio ensures low-distortion imaging, even at maximum penetration depths.
Image Adjustment Suite: Equipped with multi-dimensional optimization features, including Gain (30dB-105dB), 8-level Dynamic Range (40-110), and 5-level Noise Reduction (0-4). These tools allow operators to fine-tune image brightness, contrast, and noise suppression—adapting to tissue density variations (e.g., fatty tissue vs. muscle, fetal vs. adult tissues) and ensuring clear visualization of target structures.
Dynamic Imaging: The scanner maintains smooth real-time imaging for dynamic processes like fetal movement, organ peristalsis, and vascular pulsation, supporting real-time assessment of tissue functionality during examinations (e.g., cardiac wall motion, urinary tract peristalsis).

3. Clinical Applications & Data Management

Practical features tailored to diverse clinical workflows:

Broad Clinical Applicability: Designed to excel in an extensive range of applications, including convex array-focused imaging (abdominal, gynecology, obstetrics, cardiac, urinary system, kidney, lung) and cross-specialty use cases (thyroid, small organs, pediatrics, vascular, carotid arteries, breast, musculoskeletal, blood flow, neurology). This versatility makes it a single solution for general practitioners and multi-specialty clinics, reducing the need for multiple imaging devices.
Measurement & Storage: Supports precise quantitative measurements (distance, area, angle) for evaluating lesion size, organ dimensions, fetal biometrics (e.g., biparietal diameter, femur length), and vascular diameter. Images and videos are directly stored on mobile phones or tablets, facilitating on-site review, quick case sharing with colleagues, and seamless integration with electronic medical records (EMRs)—aligning with modern digital healthcare workflows.

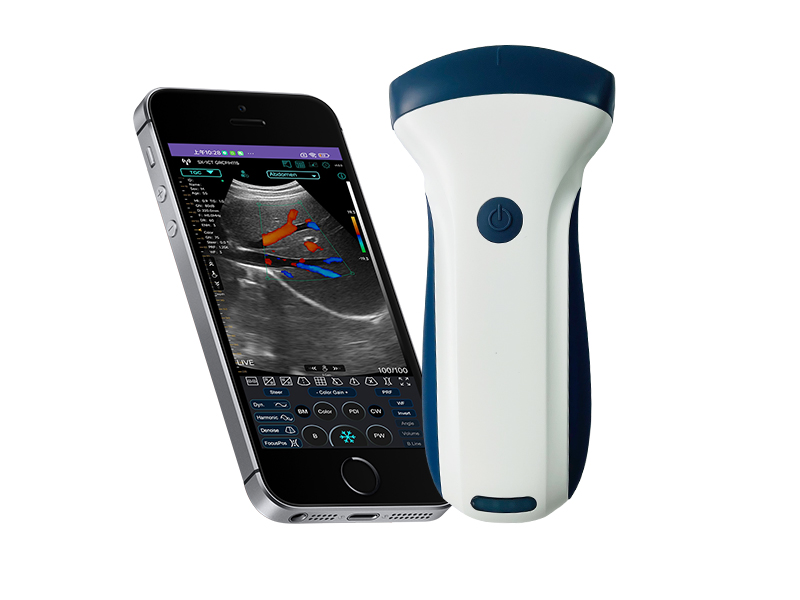

User-Centric Operation: Compatible with smartphone or tablet screens, the scanner leverages intuitive touch-based controls via dedicated apps for iOS, Android, and Windows. This simplifies operation, reduces training time, and enables efficient use in fast-paced clinical environments.

4. Power & Physical Specifications

Portability and flexibility optimized for diverse use cases:

Power Options: Built-in 2200mAh lithium battery with two versions—regular (1.5 hours of continuous use) for short shifts or quick examinations, and larger battery version (3 hours) for extended clinical work, mobile home visits, or field services. This flexibility adapts to different practice needs, from in-clinic consultations to remote medical missions.
Ultra-Lightweight Design: Compact dimensions (156mm×60mm×20mm) and 180g net weight make it one of the lightest convex palm ultrasound scanners on the market. Its ergonomic handheld form factor reduces operator fatigue during prolonged use, while durable construction withstands the demands of daily clinical and mobile environments.
System Compatibility: Seamlessly works with iOS, Android, and Windows operating systems, supporting flexible connection to a wide range of devices. This cross-platform adaptability ensures compatibility with existing clinical setups and user preferences, enhancing its practicality across diverse healthcare settings.

The VISION7 C Convex Palm Doppler Ultrasound Scanner integrates deep penetration, high-resolution imaging, and exceptional versatility in an ultra-portable design. It balances precision, portability, and operational convenience—making it an indispensable tool for radiologists, obstetricians, gynecologists, general practitioners, emergency physicians, and mobile healthcare providers. Whether in a clinic, hospital, or remote field setting, it delivers consistent, high-quality imaging to support timely and accurate clinical decisions across a broad spectrum of medical specialties.
