1. Core Product Features

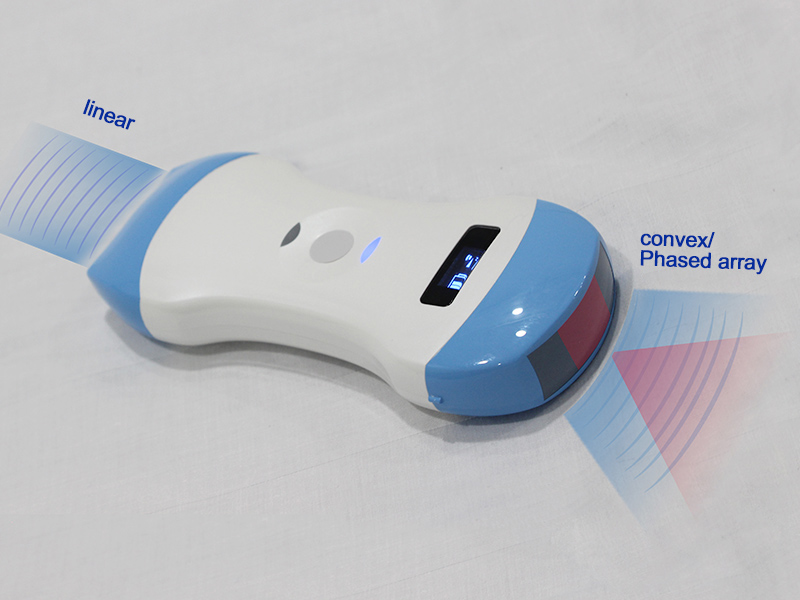

• 3-in-1 Probe Versatility: Integrates convex, linear, and phased array probes, covering deep-tissue, superficial, and cardiac imaging needs without requiring multiple devices.
• Advanced Imaging & Cost-Efficiency: Adopts state-of-the-art digital imaging technology for sharp, detailed images, offering high performance at an accessible price point.

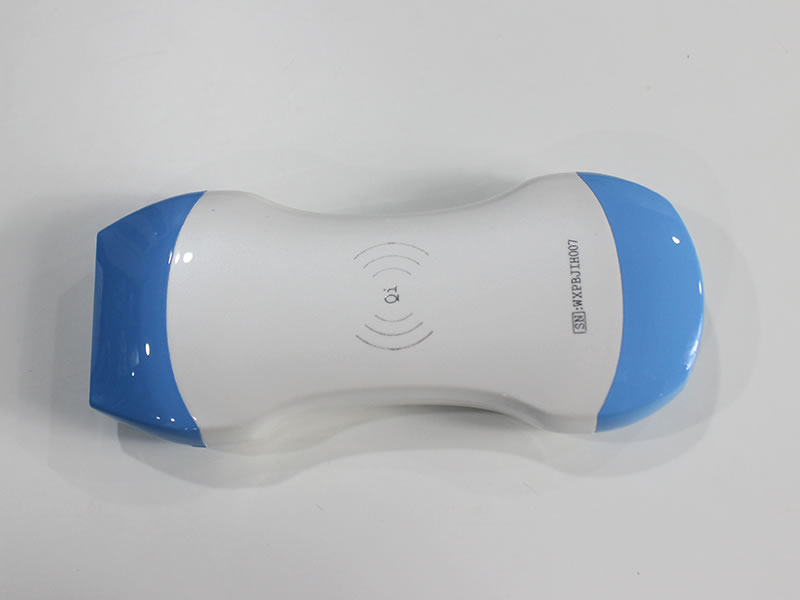

• Wireless Convenience: Supports WiFi (802.11g/20MHz/5G/450Mbps) connectivity and wireless charging (2-hour full charge), enabling cable-free operation and easy power replenishment.
• Ultra-Portable Design: Compact dimensions (156×60×20mm) and 250g weight make it easy to carry in a medical bag, ideal for mobile and on-site examinations.
• Multi-Scenario Applicability: Suitable for emergency medicine, clinical practice, outdoor medical services, and veterinary inspections, adapting to diverse professional needs.

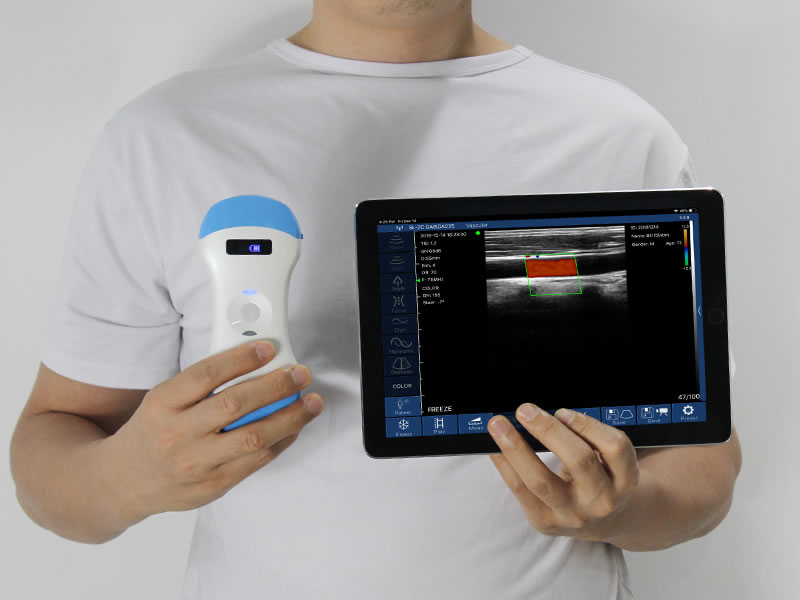

• Intelligent & Expandable Platform: Leverages smartphone/tablet/PC terminals for powerful functions in imaging, storage, communication, and printing, with free, unlimited-user software (no hidden fees).
• Global Usability: Offers APP support for iOS, Android, and Windows systems, with multi-language options (Chinese, English, Italian, Spanish, Russian, German, Brazilian Portuguese) to cater to international users.

2. Technical Specifications

2.1 Probe & Imaging Core Parameters

• Frequency Range: Convex probe (3.2MHz/5MHz) for deep penetration; Phased array probe (2.5MHz/5MHz) for cardiac imaging; Linear probe (7.5MHz/10.0MHz) for superficial clarity.
• Imaging Range: Adjustable display depth—Convex (90/160/220/305mm), Phased array (90/120/140/160mm), Linear (20/40/60/80mm). Scan angle/width: Convex 45°, Phased array 80°, Linear 40mm.
• Imaging Performance: 3-hour continuous battery life; 18 frames/second smooth frame rate; 256-level grayscale for subtle tissue contrast.

2.2 Image Optimization & Clinical Tools

• Image Adjustment: Comprehensive tools including Gain (30dB-105dB), 8-level Dynamic Range (40-110), Focus, Depth, Harmonic, and 5-level Noise Reduction (0-4) to minimize interference and improve clarity.
• Puncture Assistance: In-plane/out-of-plane puncture guide lines, automatic vascular measurement, and needle point enhancement function, supporting precise interventional procedures.
• Cineplay & Measurement: Auto/manual playback with adjustable frames (100/200/500/1000) for frame-by-frame review; measurement of Length, Area, Angle, and Obstetric parameters for quantitative diagnosis.

2.3 Connectivity & Compatibility

• Wireless & Storage: WiFi connectivity for data transfer; images/videos stored directly on mobile devices/tablets/PCs for easy access, sharing, and archiving.
• System Compatibility: Works with Apple iOS, Android, and Windows, supporting flexible connection to smartphones, tablets, and computers.

3. Configuration Details

3.1 Standard Configuration

• 1×Wireless Probe Type Ultrasound Scanner
• 1×USB Charging Cable

3.2 Optional Accessories

• Carrying Bag / Aluminium Suitcase (for safe storage and transportation)
• Stainless Steel Puncture Guide (enhancing interventional precision)
• Wireless Power Bank (extending battery life for long shifts)
• Android/iOS Phone/Tablet (pre-configured for immediate use)
• Tablet Bracket (enabling hands-free operation)
• Trolley (mobile operation platform for clinical settings)
