1. Core Scanning & Probe Parameters

• Scanning & Probe Configuration: Electronic Array scanning, supporting convex (with cardiac phased array function) and linear array dual modes. 128-element design ensures high-quality signal processing; convex probe (5/7MHz) for deep-medium tissue imaging, linear probe (7.5/10MHz) for superficial tissue clarity, meeting diverse clinical examination needs.
• Imaging Range: Adjustable scanning depth – convex (60/90/120/160mm) for deep-medium tissues, linear (20/40/60/80mm) for superficial structures. Field of view: Micro-Convex R20 (88° arc) for wide-range deep observation, Linear L40 for focused superficial imaging, balancing scope and detail.
• Probe Physical Specs: Convex probe adopts ergonomic curved-face design for tight skin contact; linear probe features flat-face design for precise superficial scanning. Both match the scanner’s 250g weight distribution, enabling comfortable handheld operation during prolonged examinations.

2. Imaging Quality & Optimization Functions

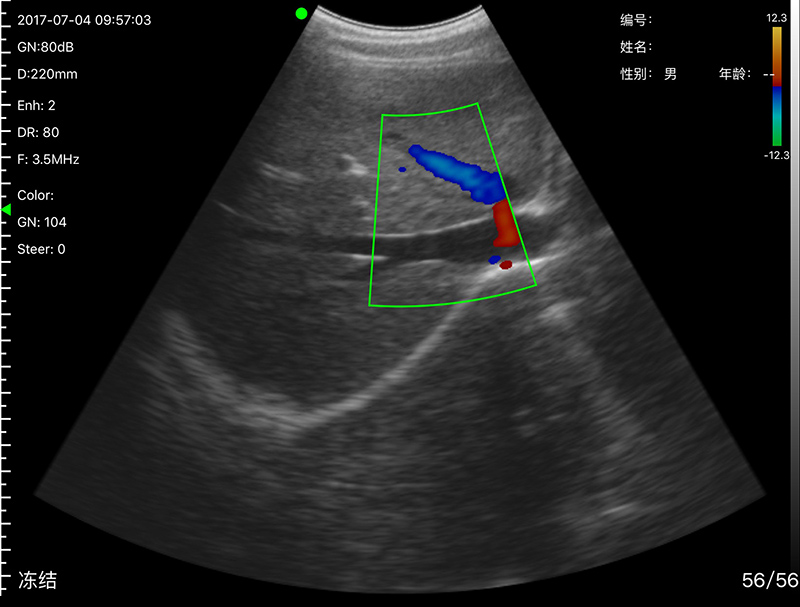

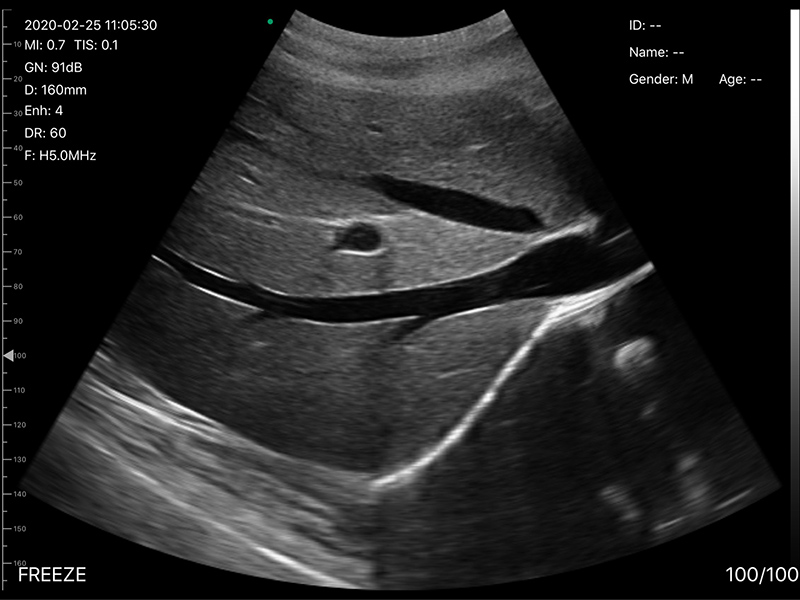

• Imaging Modes & Foundation: Supports B, B/M, Color, PDI (Power Doppler Imaging), and PW (Pulsed Wave Doppler) modes. 18f/s frame rate ensures smooth real-time imaging; 256-level gray scale accurately reproduces subtle tissue density differences, aiding in identifying both deep and superficial abnormalities.
• Imaging Foundation: 256-level image gray scale accurately reproduces subtle density differences between normal deep tissues and lesions, laying a solid foundation for precise identification of deep-seated abnormalities (e.g., abdominal tumors, pelvic cysts).
• Image Adjustment: Equipped with comprehensive optimization tools, including Gain (30dB-105dB), 8-level Dynamic Range (40-110), and 5-level Noise Reduction (0-4). These tools effectively reduce imaging noise, balance brightness across different depths, and enhance image layering for both convex and linear scanning modes.

3. Clinical Functions & Data Management

• Measurement Functions: Supports distance, area, obstetrics, and other clinical measurements, providing accurate quantitative data. It assists in evaluating lesion size, organ dimensions, and obstetric indicators, laying a reliable foundation for clinical decision-making and follow-up assessments.
• Data Storage: Images and videos are directly stored on mobile phones or tablets, eliminating the need for additional storage devices. This design facilitates on-site review of both deep and superficial images, quick case sharing, and easy data archiving for follow-up comparison.

4. System Compatibility & Physical Specifications

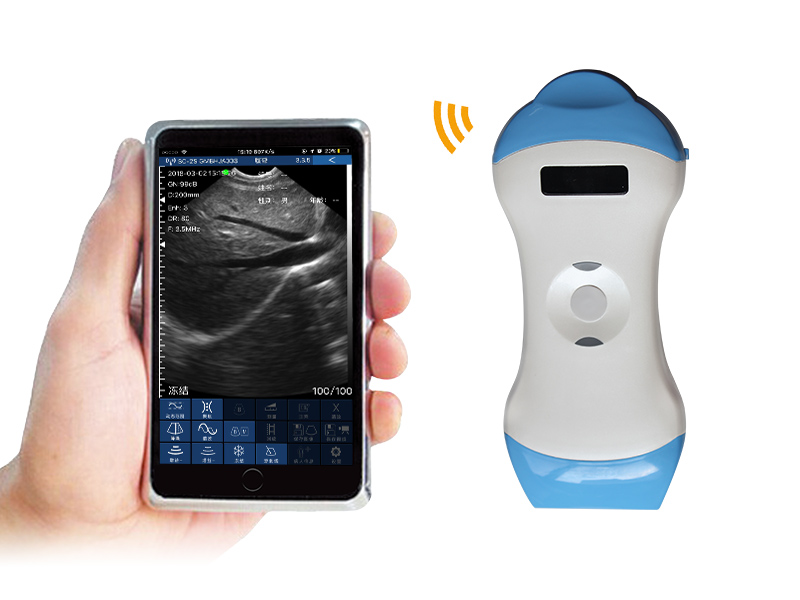

• Display & Compatibility: Adapts to smartphone or tablet screens; compatible with iOS, Android, and Windows operating systems, enabling flexible connection to various terminal devices. This cross-system design reduces terminal replacement costs and adapts to different clinical usage habits of medical professionals.
• Power Supply: Equipped with a built-in 2800mAh lithium battery, supporting 3 hours of continuous operation, fully covering daily clinical examination needs without frequent charging, ideal for mobile or bedside use.

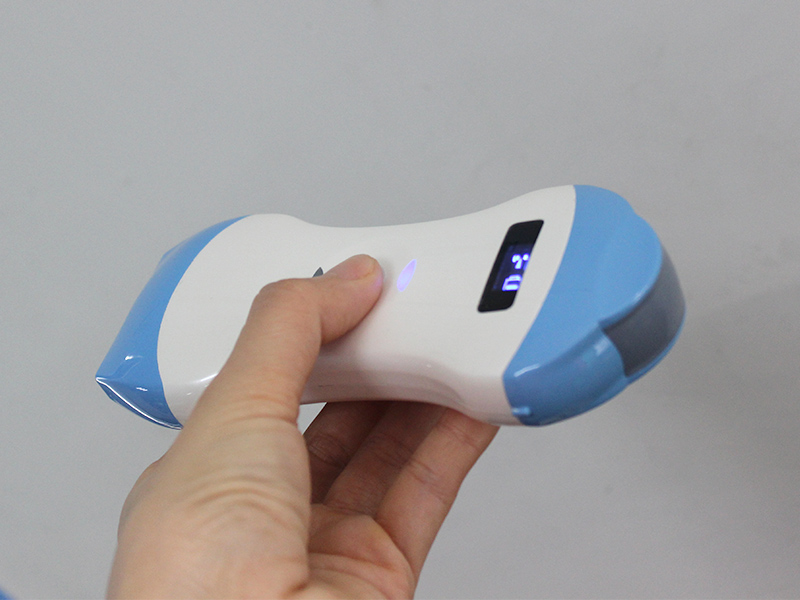

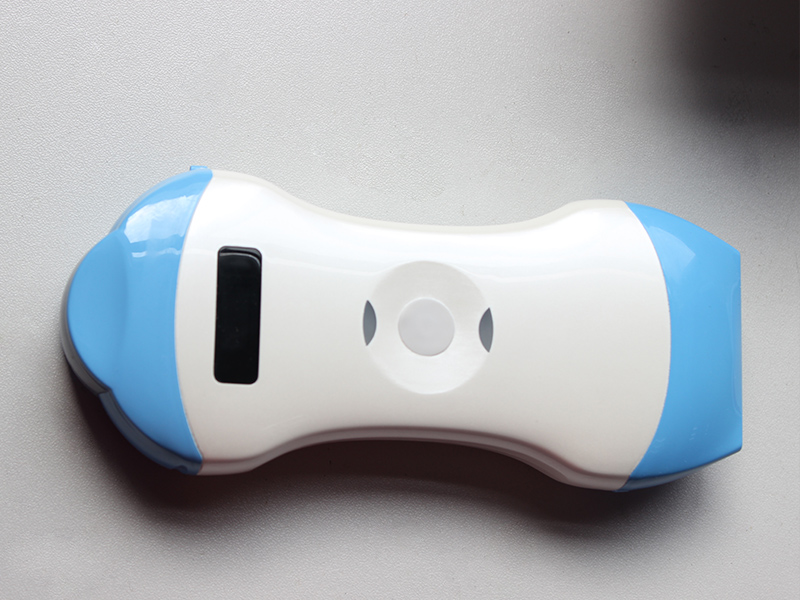

• Physical Dimensions: 156mm×60mm×20mm compact size, 250g net weight, with an ergonomic handheld design for comfortable one-hand operation. It can be easily carried in a medical bag, suitable for bedside examinations, home visits, and community healthcare requiring dual-mode imaging.
